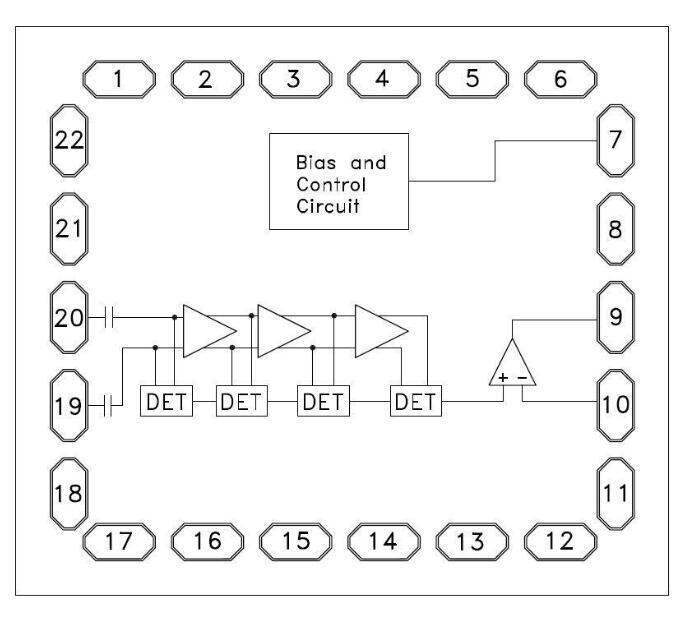

Same model may have multiple batches, images only for reference.
HMC913-SX Analog Devices Inc.
Same model may have multiple batches, images only for reference.

HMC913-SX

Part No HMC913-SX
Manufacturer Analog Devices Inc.
Catalog RF Amplifiers
Description IC RF AMP GPS 600MHZ-20GHZ DIE
Datasheet
HMC913-SX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The HMC913 is a Successive Detection Log Video Amplifier (SDLVA) which operates from 0.6 to 20 GHz. The HMC913 provides a logging range of 59 dB. This device offers typical fast rise/fall times of 5/10 ns and a superior delay time of only 14 ns. The HMC913 log video output slope is typically 14 mV/dB. Maximum recovery times are less than 30 ns. Ideal for high speed channelized receiver applications, the HMC913 operates from a single +3.3 V supply, and consumes only 80 mA. All data shown herein is measured with the chip in a 50 Ohm environment and contacted with RF probes.
