Same model may have multiple batches, images only for reference.

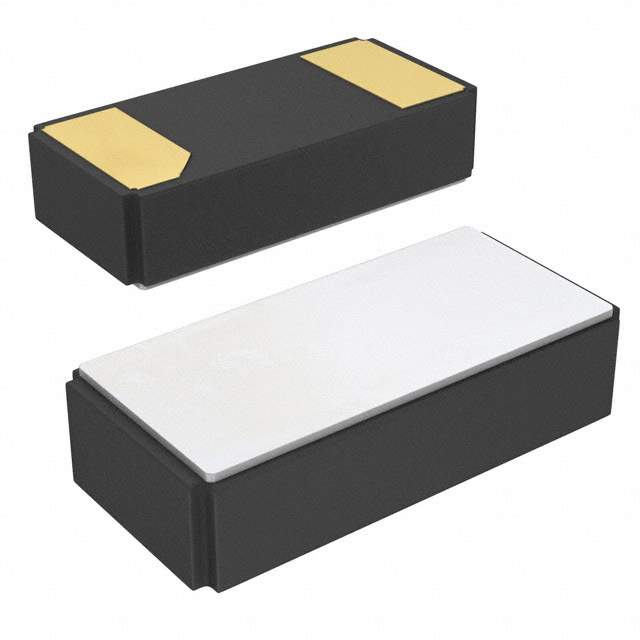

9H03200034 Real Image
Same model may have multiple batches, images only for reference.

9H03200034

Part No 9H03200034
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 7PF SMD / 32.768 kHz ±20ppm Crystal 7pF 70 kOhms 2-SMD, No Lead
Datasheet
9H03200034 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer TXC CORPORATION
Packaging Reel - TR
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.033" (0.85mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Standard Package 3,000
Win Source Part Number 1328345-9H03200034
Ultra Librarian 3D Model Ultra Librarian 9H03200034 CAD Model

Description

TXC CORPORATION's kHz Crystal (Tuning Fork) is a popular choice for crystals, oscillators, and resonators from TXC CORPORATION.

  • Mounting: Surface Mounted
  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 7pF
  • Operating Mode: Fundamental
  • Temperature Range: -40°C to 85°C
