Same model may have multiple batches, images only for reference.

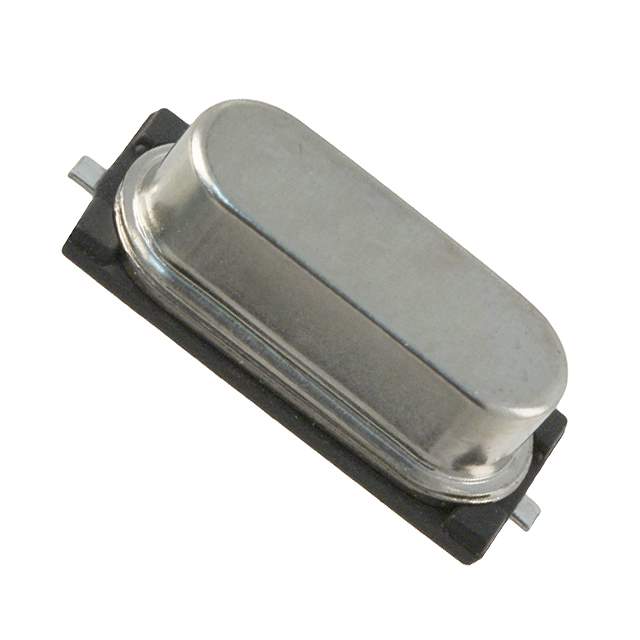

9C25000131 Real Image
Same model may have multiple batches, images only for reference.

9C25000131

Part No 9C25000131
Manufacturer TXC CORPORATION
Catalog Crystals
Description CRYSTAL 25MHZ 20PF SMD
Datasheet
9C25000131 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer TXC CORPORATION
Series 9C
Packaging Reel package
Type MHz Crystal
Frequency 25MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohm
Operating Temperature Range -10°C ~ 60°C
Mounting SMD
Package HC49/US
Dimension 0.449" L x 0.189" W (11.40mm x 4.80mm)
Height - Seated (Maximum) 0.161" (4.10mm)
Win Source Part Number 766561-9C25000131
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 9C25000131 CAD Model

Description

The TXC CORPORATION 9C series crystal component from TXC CORPORATION is a high-quality MHz crystal.

  • Frequency: 25MHz
  • ESR: 30 Ohms
  • Frequency Stability and Tolerance: ±30ppm
  • Load Capacitance: 20pF
  • Operating Temperature: -10°C ~ 60°C
  • Package: HC49/US
  • Mounting: Surface Mount
  • Dimensions: 0.449" L x 0.189" W (11.40mm x 4.80mm)
  • Height Seated (Maximum): 0.161" (4.10mm)
  • Supply and Demand Status: Limited
  • Halogen-Free: Yes
