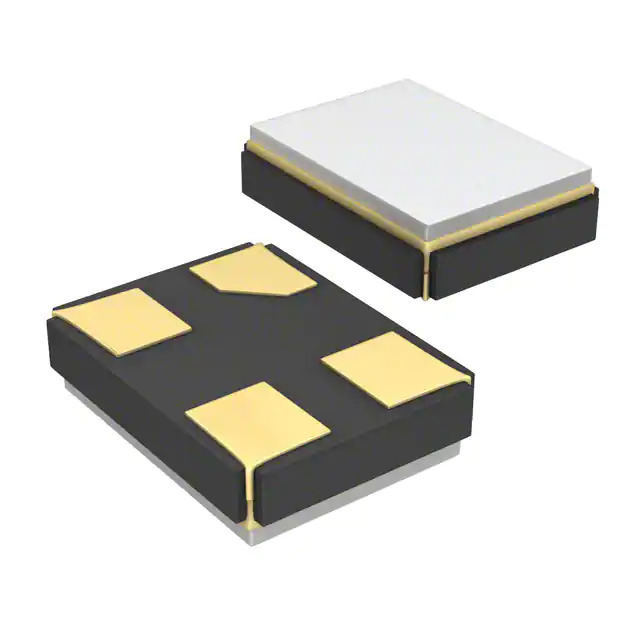

8Z26000054 TXC CORPORATION
Same model may have multiple batches, images only for reference.

8Z26000054

Part No 8Z26000054
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 26.0000MHZ 11PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 8Z
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 11pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 75°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366347-8Z26000054
Ultra Librarian 3D Model Ultra Librarian 8Z26000054 CAD Model

Description

The 8Z26000054 is a 26 MHz crystal from the 8Z series manufactured by TXC CORPORATION.

  • Frequency: 26 MHz
  • Series: 8Z
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, No Lead
  • Operating Temperature: -20°C to 75°C
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 11pF
  • ESR (Equivalent Series Resistance): 100 Ohms
  • Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.022" (0.55mm)
