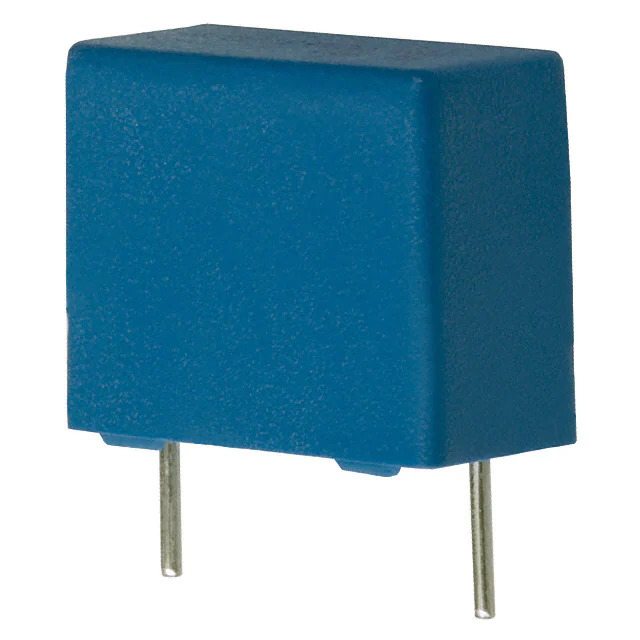

B32522C3105J189 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32522C3105J189

Part No B32522C3105J189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 5% 250VDC RADIAL / 1 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3252* - MKT General Purpose
Package Tape & Reel (TR)
Product Status Active
Capacitance 1 µF
Tolerance ±5%
Voltage Rating - AC 160V
Voltage Rating - DC 250V
Dielectric Material Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 0.709" L x 0.335" W (18.00mm x 8.50mm)
Height - Seated (Max) 0.571" (14.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1360055-B32522C3105J189
Ultra Librarian 3D Model Ultra Librarian B32522C3105J189 CAD Model

Description

The B32522C3105J189 is a MKT general purpose film capacitor from EPCOS - TDK Electronics.

  • Capacitance: 1 µF
  • Tolerance: ±5%
  • Voltage Rating (AC): 160V
  • Voltage Rating (DC): 250V
  • Application: Automotive and EMI/RFI Suppression
  • Construction: Metallized Stacked Layers
  • Mounting Type: Through Hole
  • Size: 0.709" L x 0.335" W (18.00mm x 8.50mm)
  • Height (Seated): 0.571" (14.50mm)
  • Rating: AEC-Q200
  • REACH: Unaffected
  • ECCN: EAR99
  • Dielectric Material: Polyester and Polyethylene Terephthalate (PET)
