Same model may have multiple batches, images only for reference.

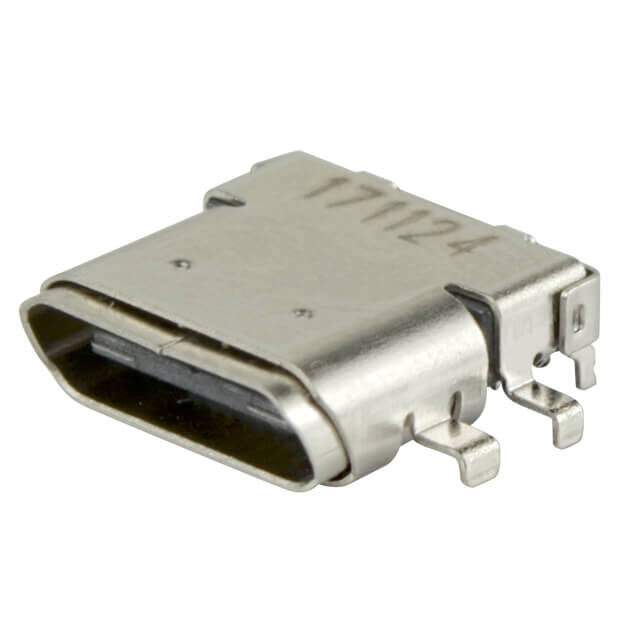

UJ31-CH-4-MSMT-TR Real Image
Same model may have multiple batches, images only for reference.

UJ31-CH-4-MSMT-TR

Part No UJ31-CH-4-MSMT-TR
Manufacturer CUI Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB3.1 TYPEC 24POS SMD / USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Datasheet
UJ31-CH-4-MSMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr CUI Devices
Series UJ31
Package Tape & Reel
Product Status Obsolete
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1) )
Mounting Type Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Flash Finish Thickness, Board Guide
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A, 5A, 6.25A
Voltage - Rated 20V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Base Product Number UJ31-CH
Standard Package 1,250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1337333-UJ31-CH-4-MSMT-TR
Ultra Librarian 3D Model Ultra Librarian UJ31-CH-4-MSMT-TR CAD Model

Description

The UJ31 series USB-C connector assembly is a 24-contact receptacle with flash finish thickness and board guide.

  • Connector Type: USB - C (USB Type-C)
  • Gender: Receptacle
  • Number of Contacts: 24
  • Port Orientation: 180°
  • Termination: Solder
  • Shielding: Shielded
  • Current Rating (Amps): 5A
  • Voltage - Rated: 20V
  • Mating Cycle: 10000
  • Features: Board Guide
  • Contact Finish - Post: Gold
  • Mounting Type: Board Edge, Cutout, Surface Mount, Through Hole, Right Angle
  • Operating Temperature: -30°C ~ 85°C
  • Material Flammability Rating: UL94 V-0
  • Shell Material: Steel, Stainless Steel
  • Packaging: Tape & Reel (TR)
