Same model may have multiple batches, images only for reference.

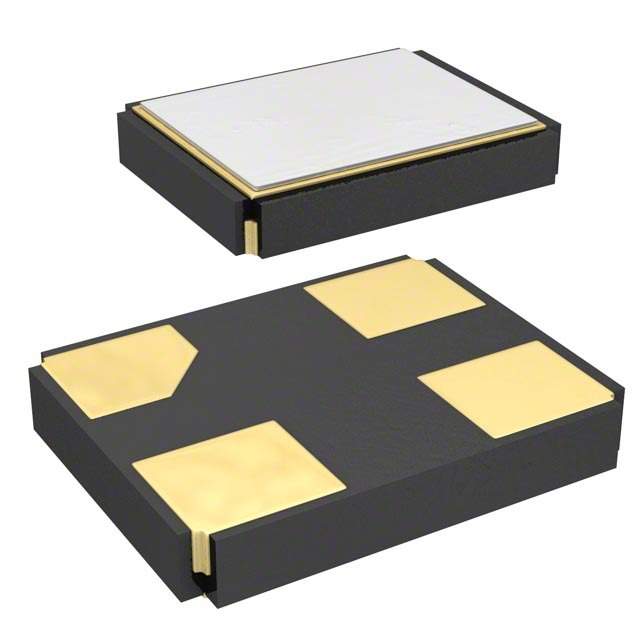

7L-26.000MCG-T Real Image
Same model may have multiple batches, images only for reference.

7L-26.000MCG-T

Part No 7L-26.000MCG-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description XTAL OSC TCXO 26.0000MHZ SNWV / 26 MHz TCXO Clipped Sine Wave Oscillator 2.5V 4-SMD, No Lead
Datasheet
7L-26.000MCG-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer TXC CORPORATION
Packaging Reel - TR
Base Resonator Crystal
Type TCXO
Frequency 26 MHz
Output Clipped Sine Wave
Voltage - Supply 2.5V
Frequency Stability ±2ppm
Temperature Range - Operating -30°C ~ 85°C
Current - Supply (Max) 2mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.031" (0.80mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 7L26000MCGT,887-1542-6,7L-26.000MCG-T-ND,887-1542-1,887-1542-2
Standard Package 3,000
Win Source Part Number 1328154-7L-26.000MCG-T
Ultra Librarian 3D Model Ultra Librarian 7L-26.000MCG-T CAD Model

Description

The TXC CORPORATION 1328154-7L-26. This component is a TCXO oscillator with a frequency of 26 MHz and a frequency stability of ±2ppm.

  • Current Supply: 2mA
  • Voltage Supply: 2.5V
  • Mounting Type: Surface Mount
  • Applications: Various electronic applications
  • ROHS: Compliant
