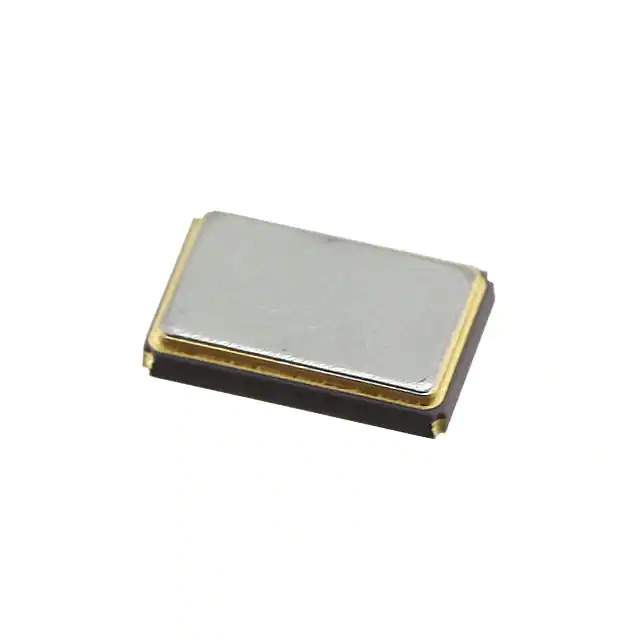

7B-27.120MEEQ-T Real Image
Same model may have multiple batches, images only for reference.

7B-27.120MEEQ-T

Part No 7B-27.120MEEQ-T
Manufacturer TXC CORPORATION
Catalog Oscillators
Description CRYSTAL 27.1200MHZ 10PF SMD
Datasheet
7B-27.120MEEQ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr TXC CORPORATION
Series 7B
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 27.12 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.041" (1.05mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 852158-7B-27.120MEEQ-T
Ultra Librarian 3D Model Ultra Librarian 7B-27.120MEEQ-T CAD Model

Description

The 852158-7B-27.120MEEQ-T is a MHz Crystal from the 7B series of crystals, oscillators, and resonators.

  • Frequency: 27.12 MHz
  • Size: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height: 0.041" (1.05mm)
  • Mounting Type: Surface Mount
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Mode: Fundamental
  • Load Capacitance: 10pF
  • Package: 4-SMD, no lead
  • Temperature Range: -20°C to 70°C
  • Manufacturer: TXC CORPORATION
  • Status: Obsolete
