Same model may have multiple batches, images only for reference.

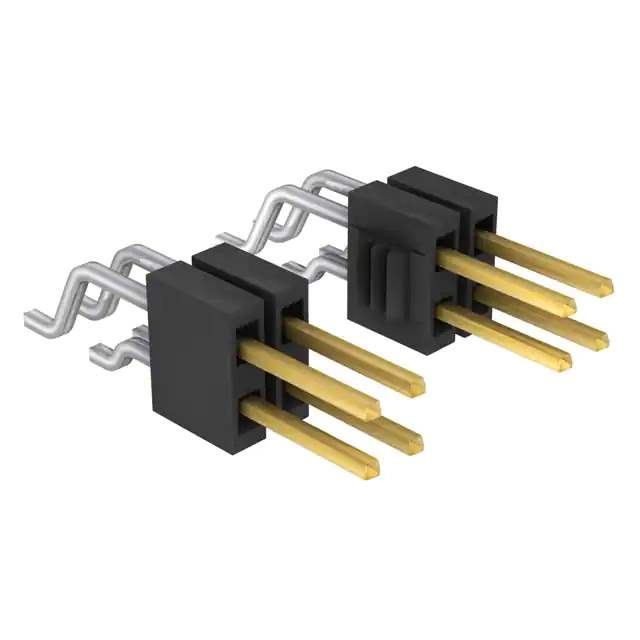

FTSH-110-01-F-DH-C-TR Real Image
Same model may have multiple batches, images only for reference.

FTSH-110-01-F-DH-C-TR

Part No FTSH-110-01-F-DH-C-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 20POS 1.27MM / Connector Header Surface Mount, Right Angle 20 position 0.050" (1.27mm)
Datasheet
FTSH-110-01-F-DH-C-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTSH
Package Tape & Reel
Product Status Active
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.135" (3.43mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTSH-110
Standard Package 575 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 872417-FTSH-110-01-F-DH-C-TR
Ultra Librarian 3D Model Ultra Librarian FTSH-110-01-F-DH-C-TR CAD Model

Description

The FTSH series is a reliable line of rectangular connectors designed for board to board or cable connections. The 872417-FTSH-110-01-F-DH-C-TR is a 20-position male pin header with a cuttable feature.

  • Positions: 20
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • Pitch: 0.050" (1.27mm)
  • Current Rating: 3.4A per contact
  • Packaging: Tape & reel
  • Insulation Material: UL94 V-0 rated liquid crystal polymer (LCP)
  • Mounting: Surface mount header with a right-angle mounting type
  • Operating Temperature: -55°C to 125°C
