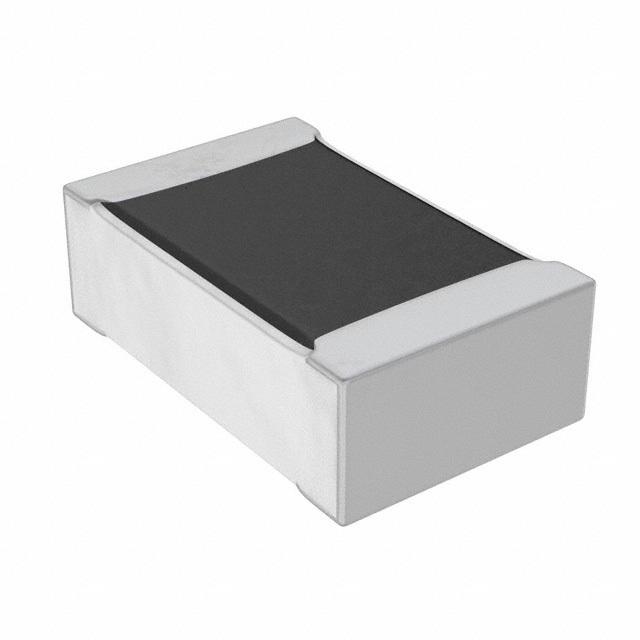

The PFC-W0805LF-03-4992-B is a precision thin film chip resistor manufactured by TT Electronics. These resistors are designed for applications requiring high stability, tight tolerance, and low temperature coefficient, making them suitable for precise and reliable electronic circuits. The '0805' in the part number refers to the EIA 0805 case size, a standard dimension for surface mount resistors. The 'LF' denotes that the resistor has lead-free terminations, complying with RoHS standards.

Applications:

• Precision analog circuits: Used in applications demanding accurate and stable resistance values.
• Test and measurement equipment: Essential for precise measurements and reliable performance.
• Medical devices: Suitable for use in sensitive medical equipment where high reliability is critical.
• Automotive electronics: Designed to withstand the harsh conditions of automotive environments.
• Industrial control systems: Used in feedback loops and control circuits requiring precise resistance values.

Features:

• Thin film technology: Provides excellent stability and low noise performance.
• Tight tolerance: Ensures precise resistance values for accurate circuit performance.
• Low temperature coefficient (TCR): Minimizes resistance changes with temperature variations.
• Lead-free terminations: Compliant with RoHS environmental regulations.
• Surface mount design: Facilitates automated assembly and high-density board layouts.

Benefits:

• Improved circuit accuracy: Precise resistance values enhance overall circuit performance.
• Enhanced long-term stability: Thin film technology ensures minimal drift over time.
• Reduced temperature sensitivity: Low TCR minimizes resistance changes with temperature fluctuations.
• Environmentally friendly: Lead-free terminations comply with RoHS regulations.
• Simplified assembly: Surface mount design allows for efficient and automated assembly processes.

Technical Specifications:

The PFC-W0805LF-03-4992-B resistor has a resistance value of 49.9 kΩ (4992 indicates 499 with a multiplier of 10^2). The 'B' signifies a tolerance of ±0.1%. The '03' likely denotes a power rating of 0.125W, which is typical for 0805 size resistors. Thin film resistors typically exhibit a low TCR, often in the range of ±25 ppm/°C. The operating temperature range is generally -55°C to +155°C. The resistor is usually constructed with a ceramic substrate and a thin film resistive element. The terminations typically consist of a nickel barrier with tin plating to ensure solderability and prevent tin whisker growth.
