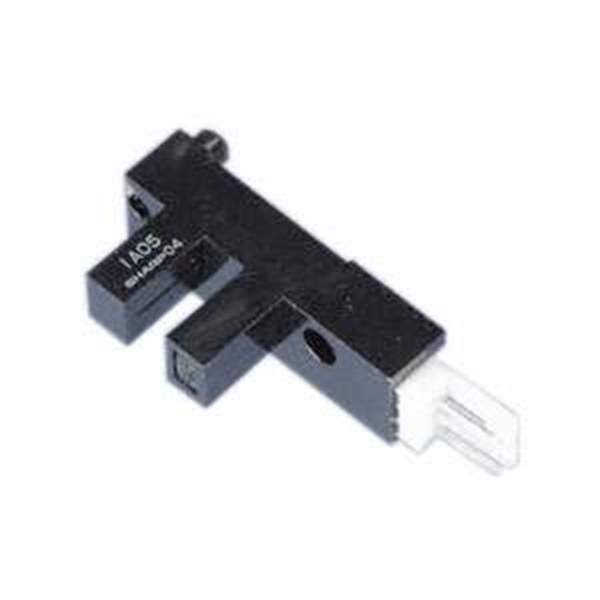

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Status Obsolete
Sensing Distance 0.197" (5mm)
Sensing Method Transmissive
Output Configuration NPN - Open Collector
Mounting Style Chassis Mount
Supply Current 30mA
Supply Voltage (V) 4.5V ~ 5.5V
Temperature Range - Operating -20°C ~ 75°C
Manufacturer Package Module, Connector
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1177474-GP1A05
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GP1A05 CAD Model

Description

The GP1A05 is a transmissive photointerrupter sensor IC manufactured by Sharp Microelectronics.

  • Sensing Distance: 5mm
  • Maximum Supply Current: 30mA
  • Output Configuration: NPN open collector
  • Mounting Style: Chassis mount
  • Package: Module connector
  • Device Status: Obsolete
  • Supply and Demand Status: Limited
