Same model may have multiple batches, images only for reference.

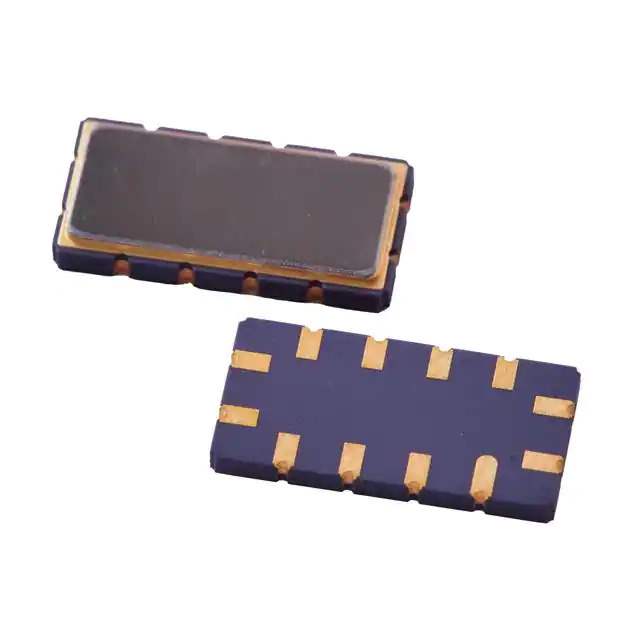

TB0746A Real Image
Same model may have multiple batches, images only for reference.

TB0746A

Part No TB0746A
Manufacturer TST - Tamsan
Catalog SAW Filters
Description SAW FILTER, SM13365-12PAD, 140.0
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - SAW Filters
Mfr TST - Tamsan
Package Tape & Reel
Product Status Active
Frequency - Center 140MHz
Insertion Loss 13dB
Applications General Purpose
Mounting Type Surface Mount
Package / Case 12-SMD, No Lead
Height (Max) 0.065" (1.65mm)
Size / Dimension 0.524" L x 0.256" W (13.30mm x 6.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1178490-TB0746A
Ultra Librarian 3D Model Ultra Librarian TB0746A CAD Model

Description

The 1178490-TB0746A is a surface mount SAW filter designed for general-purpose applications.

  • Mounting: Surface Mount
  • Application: General Purpose
  • Frequency Center: 140MHz
  • Insertion Loss: 13dB
  • Size: 0.524" L x 0.256" W (13.30mm x 6.50mm)
  • Package: 12-SMD, no lead
  • Manufacturer: TST - Tamsan
  • Product Line: Active
  • Standard Package: 500 pcs
  • Height: 0.065" (1.65mm)
  • ECCN: EAR99
