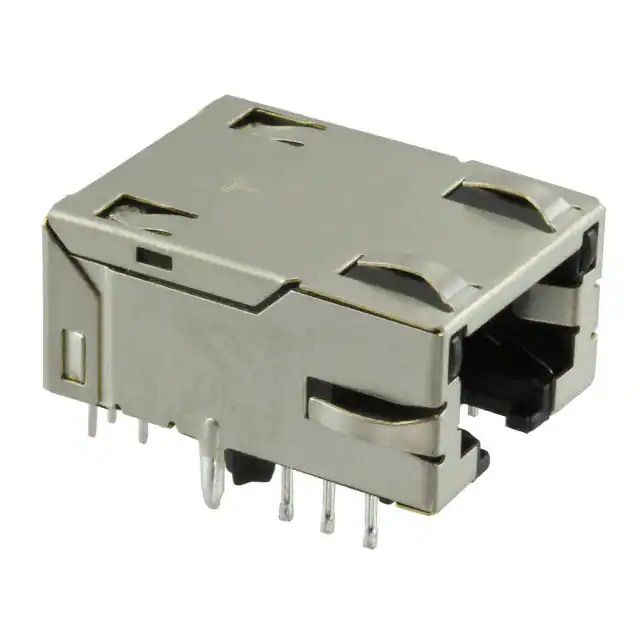

Same model may have multiple batches, images only for reference.

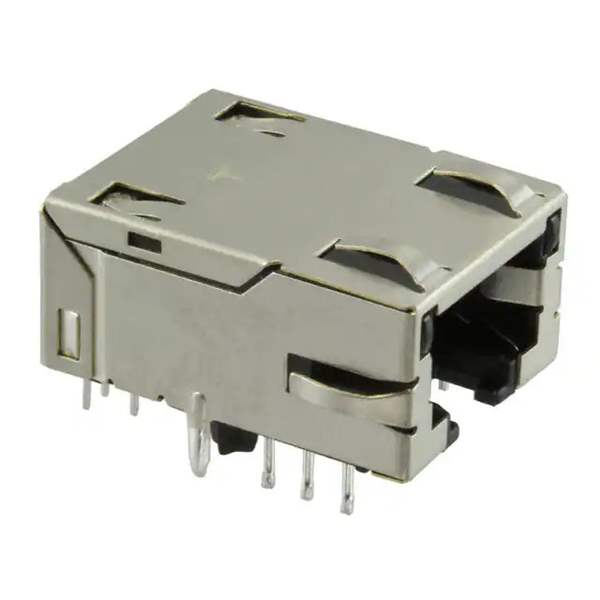

1368589-5

Name: 1368589-5
Brand: TRP Connector B.V.
SKU: 1377332
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	1368589-5
Manufacturer	TRP Connector B.V.
Catalog	Modular Connectors
Description	CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr	TRP Connector B.V.
Series	MagJack®
Package	Bulk
Product Status	Active
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.445" (11.30mm)
LED Color	Green, Orange - Green
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Guide, Decoupling Capacitance
Tab Direction	Down
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	30.0µin (0.76µm)
Shield Material	Brass
Housing Material	Polyamide (PA), Nylon
Base Product Number	1368589
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1377332-1368589-5
Ultra Librarian 3D Model	Ultra Librarian 1368589-5 CAD Model

Alternative Products

Description

The 1368589-5 is a modular connector jack with magnetics manufactured by TRP Connector B.V.

Application: 10/100/1000 Base-T and AutoMDIX
Temperature Range: 0°C to 70°C
MSL Level: 1 (Unlimited)
Shielded: Yes, EMI Finger
Orientation: Right Angle
Mounting Type: Through Hole
Contact Finish: Gold (30.0µin)
Number of Rows: Single
Termination: Solder
Housing Material: Polyamide (PA), Nylon
Height Above Board: 0.445" (11.30mm)
LEDs: Green and Orange-Green
Tab Direction: Down
