Same model may have multiple batches, images only for reference.

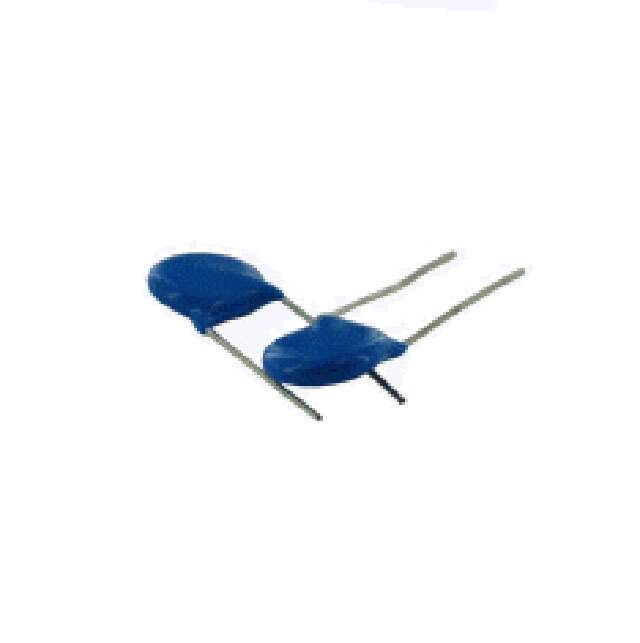

CCD-WOOE222Z632L02 Real Image
Same model may have multiple batches, images only for reference.

CCD-WOOE222Z632L02

Part No CCD-WOOE222Z632L02
Manufacturer Trigon Components
Catalog Ceramic Capacitors
Description CAP CER 2200PF 6KV Y5U RADIAL / 2200 pF -20%, +80% 6000V (6kV) Ceramic Capacitor Y5U (E) Radial, Disc
Datasheet
CCD-WOOE222Z632L02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Trigon Components
Series CCD-W
Package Bulk
Capacitance 2200 pF
Tolerance -20%, +80%
Voltage - Rated 6000V (6kV)
Temperature Coefficient Y5U (E)
Temperature Range - Operating -25°C ~ 125°C
Features High Voltage, Low Dissipation Factor
Applications General Purpose
Mounting Type Through Hole
Package / Case Radial, Disc
Lead Style Straight
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8532.25.9000
Win Source Part Number 1340045-CCD-WOOE222Z632L02
Ultra Librarian 3D Model Ultra Librarian CCD-WOOE222Z632L02 CAD Model

Description

This ceramic capacitor is from the CCD-W series.

  • Series: CCD-W
  • Capacitance: 2200 pF
  • Tolerance: -20%, +80%
  • Voltage - Rated: 6000V (6kV)
  • Temperature Coefficient: Y5U (E)
  • Applications: General Purpose
  • Features: High Voltage, Low Dissipation Factor
  • Package / Case: Radial, Disc
  • Mounting Type: Through Hole
  • Failure Rate: Not Specified
  • Operating Temperature: -25°C ~ 125°C
  • Packaging: Bulk
  • Standard Package: 1
  • MSL: 1 (Unlimited)
  • REACH: REACH info available upon request
  • HTSUS: 8532.25.9000
  • Manufacturer: Trigon Components
