Part No VPT24-6670
Manufacturer Triad Magnetics
Catalog Power Transformers

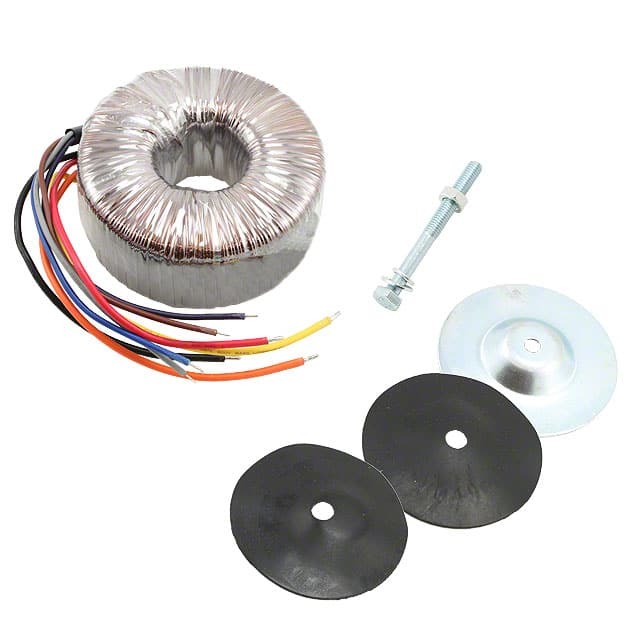

Description PWR XFMR TORO 160VA CHAS MT
Datasheet
VPT24-6670 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Triad Magnetics
Package Box
Product Status Active
Type Toroidal
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 12V, Series 24V
Current - Output (Max) Parallel 13.34A, Series 6.67A
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 160VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 103.00mm Dia x 48.00mm W
Height - Seated (Max) 52.0mm
Voltage - Isolation 4000Vrms
Weight 3.6 lbs (1.6 kg)
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 850483-VPT24-6670
Ultra Librarian 3D Model Ultra Librarian VPT24-6670 CAD Model

Description

The VPT24-6670 is a toroidal power transformer from Triad Magnetics.

  • Power Rating: 160VA
  • Primary Windings: Dual
  • Primary Voltage: 115V or 230V
  • Secondary Windings: Dual
  • Secondary Voltage (Parallel): 12V
  • Secondary Voltage (Series): 24V
  • Isolation Voltage: 4000Vrms
  • Mounting: Chassis Mount
  • Package: Box
  • Diameter: 103.00mm
  • Width: 48.00mm
  • Weight: 3.6 lbs
  • Status: Active
