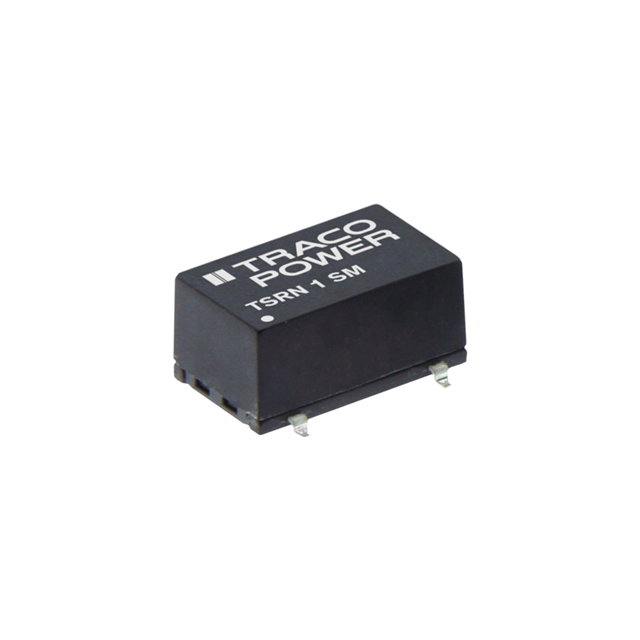

Same model may have multiple batches, images only for reference.

TSRN 1-24120SM

Name: TSRN 1-24120SM
Brand: Traco Power
SKU: 1101524
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSRN 1-24120SM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V 12W / Linear Regulator Replacement DC DC Converter 1 Output 12V 1A 13.5V - 42V Input
Datasheet	TSRN 1-24120SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Traco Power
Series	TSRN-1SM
Package	Tube
Type	Linear Regulator Replacement
Number of Outputs	1
Voltage - Input (Min)	13.5V
Voltage - Input (Max)	42V
Voltage - Output 1	12V
Current - Output (Max)	1A
Power (Watts)	12 W
Applications	ITE (Commercial)
Features	Remote On/Off, OTP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	95%
Mounting	SMD (SMT)
Package / Case	10-SMD Module, 6 Leads
Dimension	0.60" L x 0.37" W x 0.29" H (15.2mm x 9.3mm x 7.4mm)
Base Product Number	TSRN 1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1951-2526
Standard Package	10
Win Source Part Number	1101524-TSRN 1-24120SM
Ultra Librarian 3D Model	Ultra Librarian TSRN 1-24120SM CAD Model

Alternative Products

Description

The TSRN-1SM is a linear regulator replacement designed for use in various applications.

Manufacturer: Toshiba Semiconductor and Storage
Voltage Rating: 42V
Power Dissipation: 12W
Maximum Output Current: 1A
Efficiency: 95%
Operating Temperature: -40°C to 85°C
Package: 10-SMD Module, 6 Leads
Description: Designed to provide high reliability and stability
