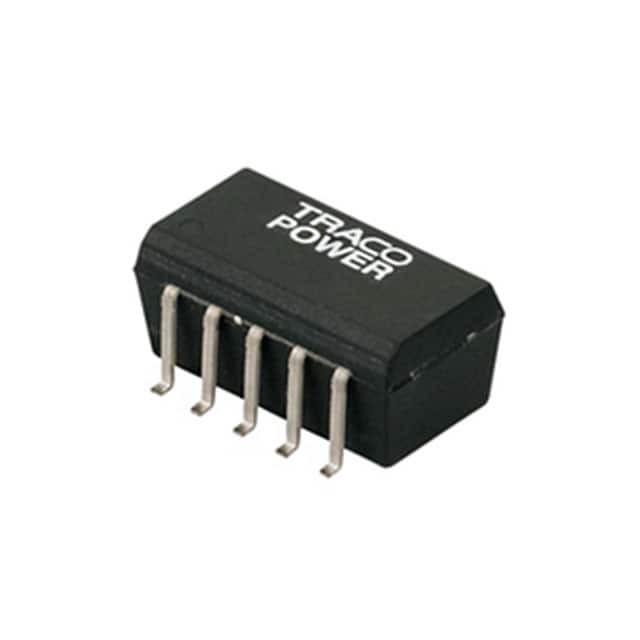

Same model may have multiple batches, images only for reference.
TSM 2405D
Same model may have multiple batches, images only for reference.

TSM 2405D

Part No TSM 2405D
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 21.6V - 26.4V Input
Datasheet
TSM 2405D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Traco Power
Series TSM (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Surface Mount
Package / Case 18-SMD Module, 10 Leads
Size / Dimension 0.60" L x 0.31" W x 0.32" H (15.2mm x 8.0mm x 8.1mm)
Base Product Number TSM 2405
Standard Package 10 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 847712-TSM 2405D
Ultra Librarian 3D Model Ultra Librarian TSM 2405D CAD Model

Description

The 847712-TSM 2405D is a 1W isolated module DC-DC converter in the Power Supplies - Board Mount - DC DC Converters category.

  • Series: TSM (1W)
  • Application: ITE (Commercial)
  • Outputs: 5V, -5V
  • Maximum Output Current: 100mA (each output)
  • Size: 0.60" L x 0.31" W x 0.32" H (15.2mm x 8.0mm x 8.1mm)
  • Mounting Type: Surface Mount
  • Input Voltage Range: 21.6V to 26.4V
  • Manufacturer: Traco Power
  • Efficiency: 75%
  • Product Status: Active
