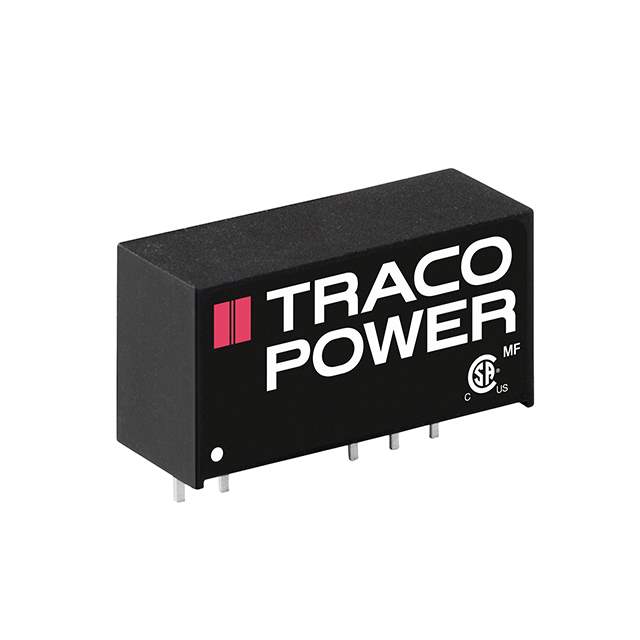

The Traco Power TMV 2412D is an isolated module DC DC converter for power supplies - board mount applications.

• Packaging: Tube
• Application: ITE (commercial)
• Size/Dimension: 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)
• Case/Package: 7-SIP module, 5 leads
• Power (watts): 1 W
• Voltage - Isolation: 3 kV
• Number of Outputs: 2
• Current - Output (max): 42mA, 42mA
• Voltage - Input (min): 24V
• Voltage - Input (max): 26.4V
• Voltage - Output 1: 12V
• Voltage - Output 2: -12V
• Efficiency: 77%
• Temperature Range: -40°C ~ 85°C (with derating)
• ROHS3 Compliant: Yes
