Same model may have multiple batches, images only for reference.

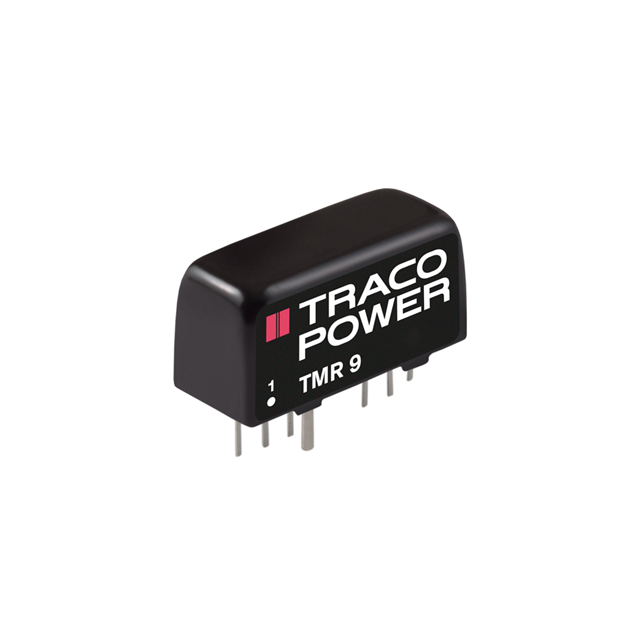

TMR 9-1223 Real Image
Same model may have multiple batches, images only for reference.

TMR 9-1223

Part No TMR 9-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 9W / Isolated Module DC DC Converter 2 Output 15V -15V 300mA, 300mA 9V - 18V Input
Datasheet
TMR 9-1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 300mA, 300mA
Power (Watts) 9 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Through Hole
Case / Package 8-SIP Module, 6 Leads
Size / Dimension 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Base Product Number TMR 9
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TMR9-1223,TMR 9-1223-ND
Standard Package 10
Win Source Part Number 1336292-TMR 9-1223
Ultra Librarian 3D Model Ultra Librarian TMR 9-1223 CAD Model

Description

The Traco Power TMR 9-1223 is a DC-DC converter module with a power rating of 9 W.

  • Outputs: Two
  • Maximum Current Output: 300mA each
  • Input Voltage Range: 9V to 18V
  • Output Voltage for Output 1: 15V
  • Output Voltage for Output 2: -15V
  • Type: Isolated module
  • Voltage Isolation: 1.6 kV
  • Applications: ITE (Commercial)
  • Package: 8-SIP module, 6 leads
  • Features: Remote On/Off and SCP
  • Efficiency: 89%
  • Operating Temperature Range: -40°C to 85°C (With Derating)
  • ROHS3 Compliant: Yes
  • ECCN: EAR99 compliant
