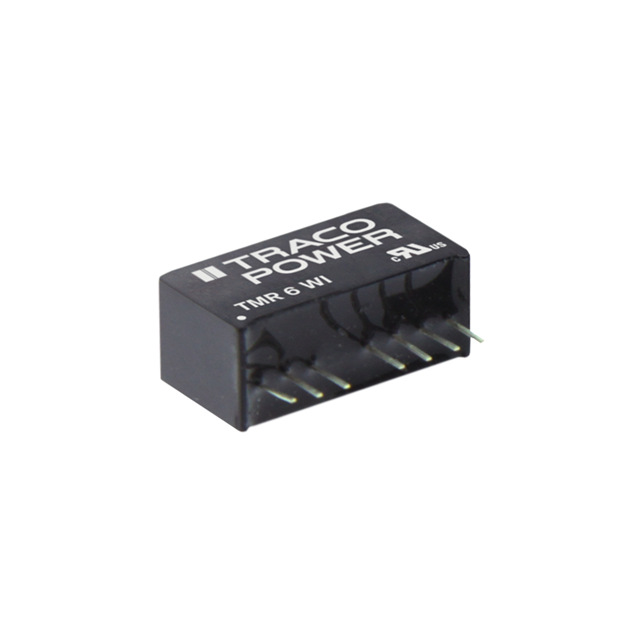

TMR 6-2421WI Real Image
Same model may have multiple batches, images only for reference.

TMR 6-2421WI

Part No TMR 6-2421WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 6W / Isolated Module DC DC Converter 2 Output 5V -5V 600mA, 600mA 9V - 36V Input
Datasheet
TMR 6-2421WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 600mA, 600mA
Power (Watts) 6 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 71°C
Efficiency 84%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Base Product Number TMR 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2400
Standard Package 10
Win Source Part Number 1336276-TMR 6-2421WI
Ultra Librarian 3D Model Ultra Librarian TMR 6-2421WI CAD Model

Description

The TMR 6-2421WI is an isolated module DC-DC converter designed for use in ITE (Commercial) applications.

  • Power Output: 6W
  • Voltage Isolation: 1.6 kV
  • Outputs: Two
  • Output Voltage: First output 5V, Second output -5V
  • Maximum Output Current: 600mA for each output
  • Input Voltage Range: 9V to 36V
  • Features: Remote on/off and SCP features
  • Mounting Package: Through-hole mounting package
  • Standard Package: 10
  • Series: TMR 6 series
  • Case Size: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
  • Operating Temperature: -40°C to 71°C
