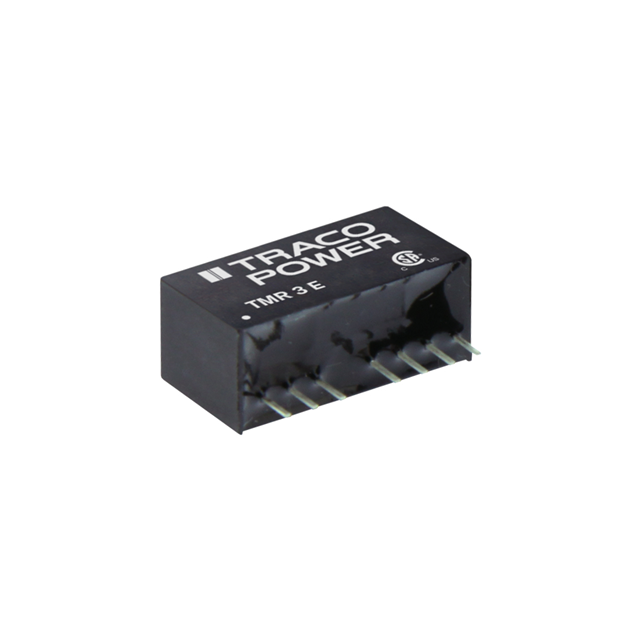

Same model may have multiple batches, images only for reference.

TMR 3-4822E

Name: TMR 3-4822E
Brand: Traco Power
SKU: 1336226
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TMR 3-4822E
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
Datasheet	TMR 3-4822E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	125mA, 125mA
Power (Watts)	3 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	83%
Mounting	Through Hole
Case / Package	8-SIP Module, 7 Leads
Size / Dimension	0.86" L x 0.37" W x 0.44" H (21.8mm x 9.3mm x 11.2mm)
Base Product Number	TMR 3
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TMR 3-4822E-ND,TMR3-4822E
Standard Package	10
Win Source Part Number	1336226-TMR 3-4822E
Ultra Librarian 3D Model	Ultra Librarian TMR 3-4822E CAD Model

Alternative Products

Description

Traco Power's TMR 3-4822E is an isolated module DC-DC converter with 3W power.

Voltage Isolation: 1.5 kV
Outputs: Two
Voltage Output: 12V and -12V respectively
Current Output: 125mA (each)
Input Voltage Range: 36V to 75V
Features: Remote on/off and short circuit protection (SCP)
Efficiency: 83%
Package: 8-SIP module, 7 leads
REACH: Unaffected
