Same model may have multiple batches, images only for reference.

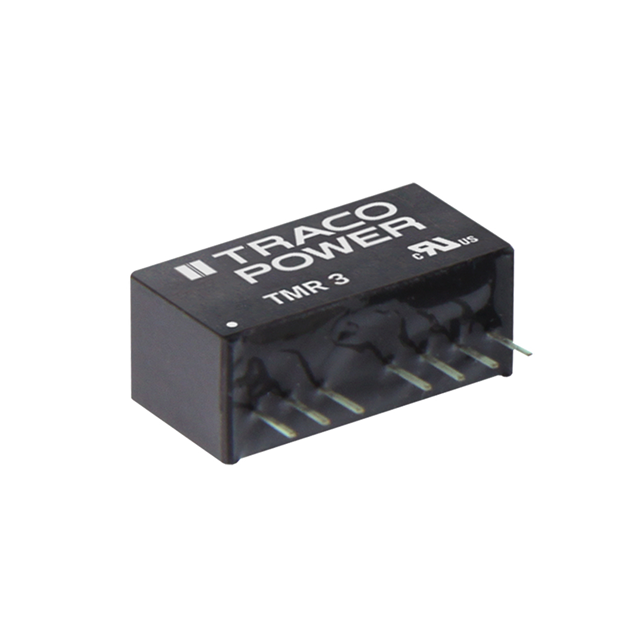

TMR 3-4822 Real Image
Same model may have multiple batches, images only for reference.

TMR 3-4822

Part No TMR 3-4822
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 36V - 75V Input
Datasheet
TMR 3-4822 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Base Product Number TMR 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2385
Standard Package 10
Win Source Part Number 1336250-TMR 3-4822
Ultra Librarian 3D Model Ultra Librarian TMR 3-4822 CAD Model

Description

This Traco Power-manufactured electronic component has a Win Source Part Number of 1336250-TMR 3-4822.

  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: Tube
  • Type: Isolated module
  • Features: Remote on/off and SCP
  • Size/Dimension: 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
  • Application: ITE (Commercial) applications
  • Standard Package: 10 units
  • Mounting: Through hole
  • Power Output: 3W
  • Voltage Isolation: 1.6 kV
  • Outputs: 2
  • Maximum Output Current: 125mA each
  • Input Voltage: 36V to 75V
  • Output Voltage: 12V and -12V respectively
  • Efficiency: 82%
  • Temperature Range: -40°C ~ 85°C (With Derating)
  • Case/Package: 8-SIP Module, 7 Leads
  • ECCN: EAR99 certified
