Same model may have multiple batches, images only for reference.

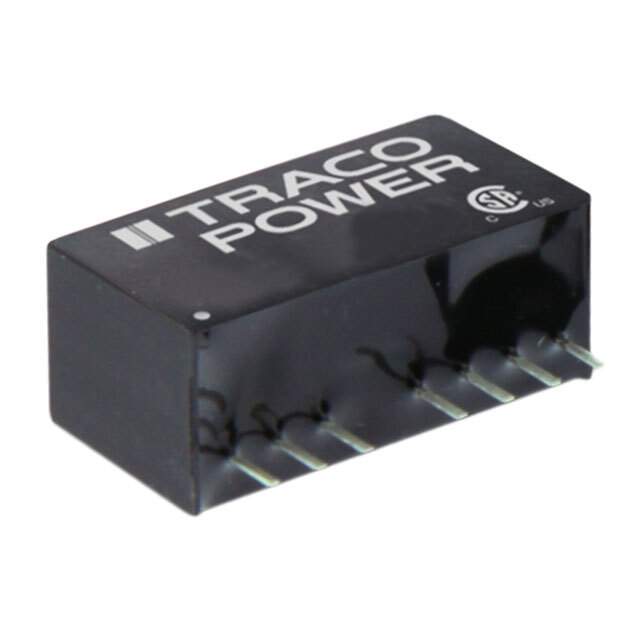

TMR 1222 Real Image
Same model may have multiple batches, images only for reference.

TMR 1222

Part No TMR 1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 9V - 18V Input
Datasheet
TMR 1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 85mA, 85mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 83%
Mounting Through Hole
Case / Package 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm)
Supplier Device Package Module
Base Product Number TMR 12
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2593
Standard Package 10
Win Source Part Number 1336122-TMR 1222
Ultra Librarian 3D Model Ultra Librarian TMR 1222 CAD Model

Description

The Traco Power 1336122-TMR 1222 is an isolated module DC-DC converter that has a power of 2W.

  • Package: 8-SIP module, 7 leads package
  • Standard Package: 10
  • Voltage Isolation: 1.5 kV
  • Outputs: Two
  • Current Output: 85mA for both
  • Input Voltage: Between 9V to 18V
  • Output Voltage: 12V (output 1), -12V (output 2)
  • Efficiency: 83%
  • Application: ITE (Commercial) applications
  • Temperature Range: -40°C to 85°C
  • Popularity: Medium
