Same model may have multiple batches, images only for reference.

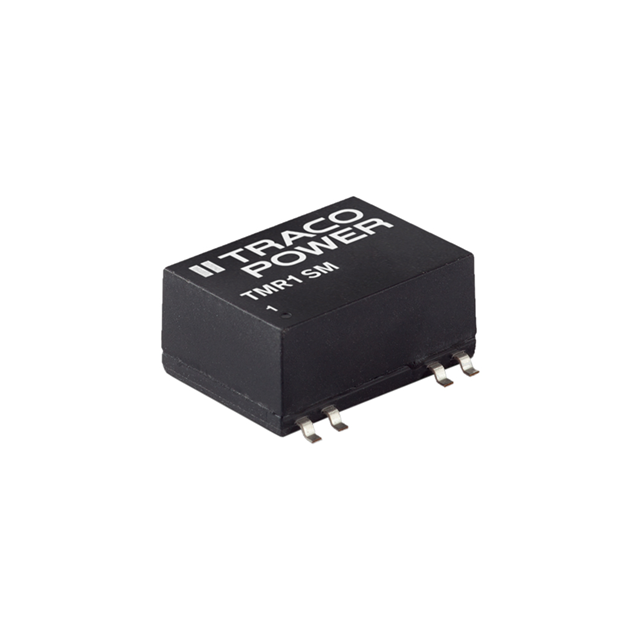

TMR 1-0523SM Real Image
Same model may have multiple batches, images only for reference.

TMR 1-0523SM

Part No TMR 1-0523SM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 990MW / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 9V Input
Datasheet
TMR 1-0523SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 990 mW
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 82°C (With Derating)
Efficiency 80%
Mounting Surface Mount
Case / Package 14-SMD Module, 7 Leads
Size / Dimension 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
Supplier Device Package Module
Approval Agency CB, CSA
Base Product Number TMR 1
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2500
Standard Package 10
Win Source Part Number 1336107-TMR 1-0523SM
Ultra Librarian 3D Model Ultra Librarian TMR 1-0523SM CAD Model

Description

The TMR 1-0523SM is an isolated DC-DC converter module manufactured by Traco Power.

  • Features: Remote on/off, OCP, and SCP
  • Size: 0.74" L x 0.54" W x 0.34" H (18.9mm x 13.7mm x 8.7mm)
  • Mounting: Surface mountable
  • Power Rating: 990mW
  • Voltage Isolation: 1.5kV
  • Outputs: Two
  • Maximum Output Current: 33mA each
  • Input Voltage Range: 4.5V to 9V
  • Output Voltage: ±15V
  • Efficiency: 80%
  • Application: ITE (commercial) applications
  • Package: Tube package
  • Approvals: CB, CSA approved
  • Compliance: ROHS3 compliant
