Same model may have multiple batches, images only for reference.

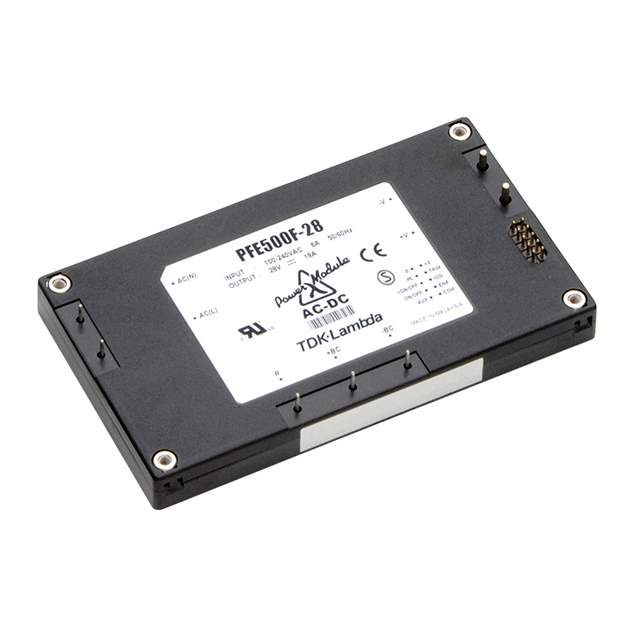

PFE500F-28 Real Image
Same model may have multiple batches, images only for reference.

PFE500F-28

Part No PFE500F-28
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 28V 500W / Enclosed AC DC Converters 1 Output 28V 18A 85 ~ 265 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer TDK-Lambda Americas Inc
Packaging Bulk
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 265 VAC
Voltage - Output 1 28V
Current - Output (Max) 18A
Power (Watts) 500 W
Applications ITE (Commercial)
Features Remote On/Off, Universal Input
Temperature Range - Operating -40°C ~ 100°C (With Derating)
Efficiency 86%
Mounting Through Hole
Case / Package 17-DIP Module, Full Brick
Size / Dimension 4.80" L x 2.76" W x 0.50" H (122.0mm x 70.0mm x 12.7mm)
Approval Agency CE, cULus
Standard Number 60950-1; 62368-1
Line Regulation 56mV
Load Regulation 56mV
Weight 0.662 lb (300.28 g)
Base Product Number PFE500
RoHS Status RoHS Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.6018
Other Part Number Q9044022,PFE500F28,285-1802
Standard Package 1
Win Source Part Number 1335291-PFE500F-28
Ultra Librarian 3D Model Ultra Librarian PFE500F-28 CAD Model

Description

The PFE500F-28 is a 500W enclosed AC/DC converter from TDK-Lambda Americas Inc.

  • Power: 500W
  • Features: Remote on/off feature and a universal input
  • Size: 4.80" L x 2.76" W x 0.50" H (122.0mm x 70.0mm x 12.7mm)
  • Application: ITE (Commercial)
  • Mounting: through-hole
  • Weight: 0.662 lb (300.28 g)
  • Number of Outputs: 1
  • Maximum Current: 18A
  • Output Voltage: 28V
  • Efficiency: 86%
  • Line and Load Regulation: 56mV
  • Operating Temperature: -40°C to 100°C (with derating)
  • Case/Package: 17-DIP module, full brick
  • Approvals: CE and cULus approved
  • RoHS Compliance: RoHS compliant
  • Standard Numbers: 60950-1 and 62368-1
