Same model may have multiple batches, images only for reference.

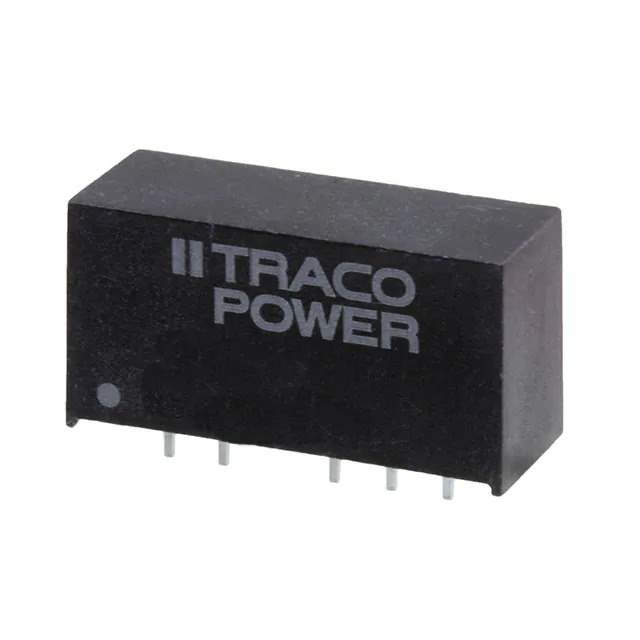

TMH 0512D

Name: TMH 0512D
Brand: Traco Power
SKU: 848134
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMH 0512D
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-12V 2W
Datasheet	TMH 0512D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Traco Power
Series	TMH (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Current - Output (Max)	83mA, 83mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	79%
Mounting Type	Through Hole
Package / Case	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.30" W x 0.40" H (19.5mm x 7.5mm x 10.2mm)
Base Product Number	TMH 0512
Standard Package	10 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	848134-TMH 0512D
Ultra Librarian 3D Model	Ultra Librarian TMH 0512D CAD Model

Alternative Products

Description

The TMH (2W) is an isolated module DC-DC converter with a power rating of 2W.

Application: Power supply applications in commercial IT equipment
Voltage Isolation: 1kV
Outputs: 12V and -12V
Output Current: 83mA (Max for both outputs)
Input Voltage: 5V to 5.5V
Efficiency: 79%
Size: 0.77" L x 0.30" W x 0.40" H
Mounting Type: Through Hole
MSL Level: Not Applicable
ECCN: EAR99
