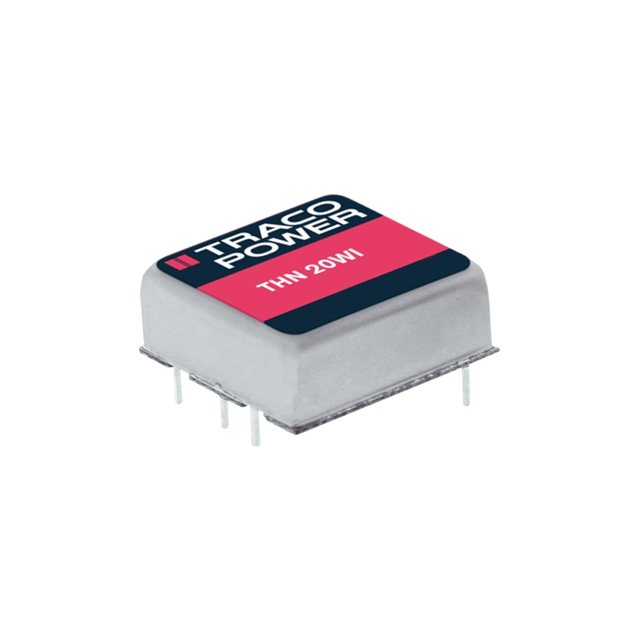

THN 20-4815WI Real Image
Same model may have multiple batches, images only for reference.

THN 20-4815WI

Part No THN 20-4815WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 20W / Isolated Module DC DC Converter 1 Output 24V 833mA 18V - 75V Input
Datasheet
THN 20-4815WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 24V
Current - Output (Max) 833mA
Power (Watts) 20 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OVP, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 91%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Approval Agency CB, cURus
Base Product Number THN 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number THN 20-4815WI-ND,THN20-4815WI
Standard Package 10
Win Source Part Number 1336038-THN 20-4815WI
Ultra Librarian 3D Model Ultra Librarian THN 20-4815WI CAD Model

Description

This electronic component is manufactured by Traco Power and has a win source part number of 1336038-THN 20-4815WI.

  • Category: Power supply - board mount>DC DC converter
  • Packaging: Tube
  • Type: Isolated module
  • Features: Remote on/off, OVP, and SCP
  • Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Mounting: Through Hole
  • Power (watts): 20 W
  • Voltage - Isolation: 1.5 kV
  • Outputs: 1
  • Current - Output (max): 833mA
  • Voltage - Input (min): 18V
  • Voltage - Input (max): 75V
  • Voltage - Output 1: 24V
  • Efficiency: 91%
  • Temperature Range - Operating: -40°C ~ 75°C (with derating)
  • Case / Package: 6-DIP Module
  • ROHS3 Compliant: Yes
  • Approval Agency: CB, cURus
