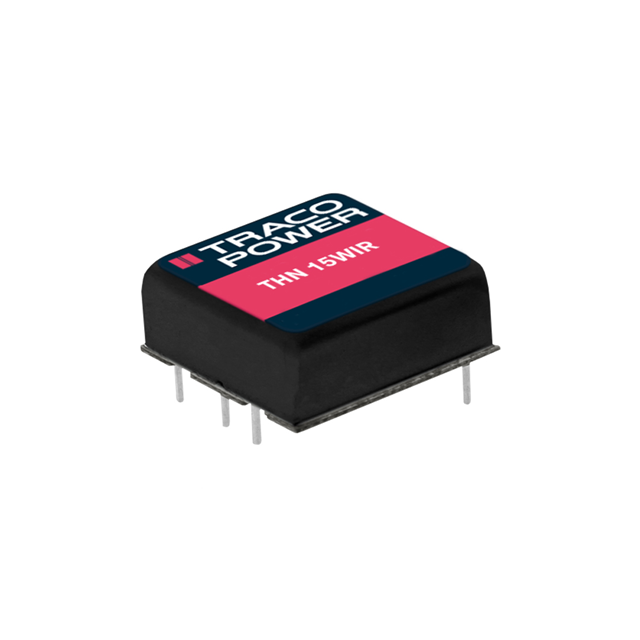

THN 15-4810WIR

Name: THN 15-4810WIR
Brand: Traco Power
SKU: 1335966
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	THN 15-4810WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 15W / Isolated Module DC DC Converter 1 Output 3.3V 4.5A 18V - 75V Input
Datasheet	THN 15-4810WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	4.5A
Power (Watts)	15 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating	-40°C ~ 90°C (With Derating)
Efficiency	88%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number	THN 15
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	THN15-4810WIR,THN 15-4810WIR-ND
Standard Package	10
Win Source Part Number	1335966-THN 15-4810WIR
Ultra Librarian 3D Model	Ultra Librarian THN 15-4810WIR CAD Model

Alternative Products

Description

The Traco Power THN 15-4810WIR is a DC-DC converter module with an output of 3.3V and a power output of 15W.

Output: 3.3V
Power Output: 15W
Features: Remote on/off, over-voltage protection, short-circuit protection, and under-voltage lockout
Efficiency: 88%
Isolation Voltage: 3 kV
Mounting Style: Through-hole
Applications: ITE (Commercial) and Railway
Operating Temperature Range: -40°C to 90°C (with derating)
Dimensions: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Compliance: ROHS3 compliant
Packaging: Tube
Standard Package: 10
