Same model may have multiple batches, images only for reference.

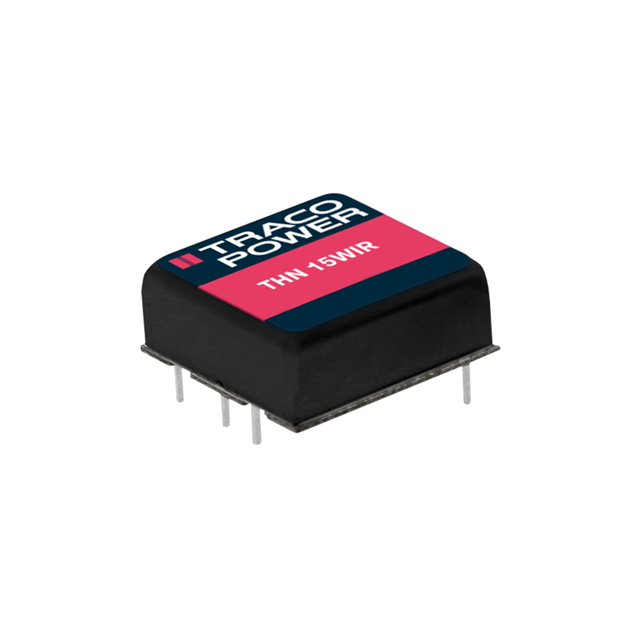

THN 15-2425WIR Real Image
Same model may have multiple batches, images only for reference.

THN 15-2425WIR

Part No THN 15-2425WIR
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-24V 15W / Isolated Module DC DC Converter 2 Output 24V -24V 315mA, 315mA 9V - 36V Input
Datasheet
THN 15-2425WIR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Voltage - Output 2 -24V
Current - Output (Max) 315mA, 315mA
Power (Watts) 15 W
Voltage - Isolation 3 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 90°C (With Derating)
Efficiency 91%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number THN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3121,THN 15-2425WIR-ND,THN15-2425WIR,THN15-2425WIR-ND
Standard Package 10
Win Source Part Number 1336000-THN 15-2425WIR
Ultra Librarian 3D Model Ultra Librarian THN 15-2425WIR CAD Model

Description

The Traco Power THN 15-2425WIR is a 15 W isolated module DC-DC converter with Remote On/Off, OVP, SCP, UVLO features.

  • Size: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Application: ITE (Commercial), Railway applications
  • Mounting: Through-hole mounting
  • Voltage Isolation: 3 kV
  • Efficiency: 91%
  • Number of Outputs: Two
  • Output Voltage: 24V voltage and -24V voltage
  • Input Voltage: 9V to 36V
  • Operating Temperature: -40°C ~ 90°C (With Derating)
  • Package: 6-DIP Module package
  • RoHS: ROHS3 compliant
  • REACH: unaffected by REACH
