Same model may have multiple batches, images only for reference.

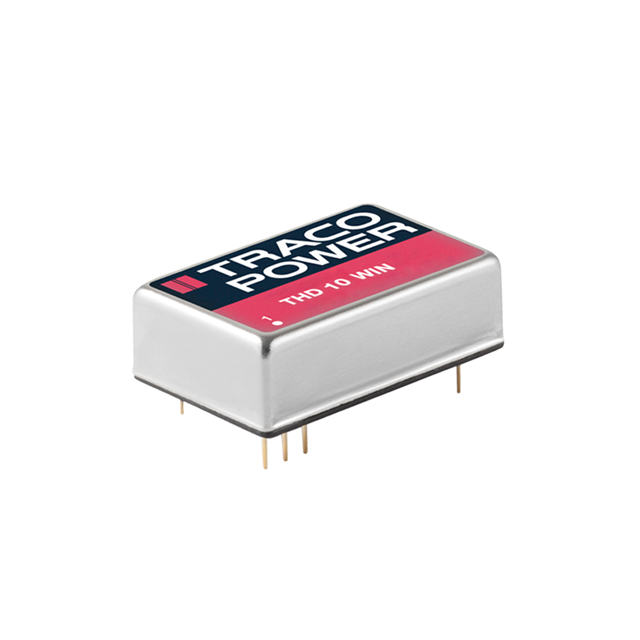

THD 10-4823WIN Real Image
Same model may have multiple batches, images only for reference.

THD 10-4823WIN

Part No THD 10-4823WIN
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 333mA, 333mA 18V - 75V Input
Datasheet
THD 10-4823WIN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 333mA, 333mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number THD 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2247
Standard Package 10
Win Source Part Number 1335889-THD 10-4823WIN
Ultra Librarian 3D Model Ultra Librarian THD 10-4823WIN CAD Model

Description

The Traco Power THD 10-4823WIN is a 10W isolated module DC-DC converter that has two outputs with a voltage output of 15V and -15V.

  • Voltage Output: 15V, -15V
  • Voltage Isolation: 1.5 kV
  • Efficiency: 87%
  • Maximum Current Output: 333mA
  • Voltage Input: 18V to 75V
  • Features: Remote On/Off, OCP, SCP
  • Application: ITE (Commercial)
  • Operating Temperature: -40°C to 85°C (With Derating)
  • Package: 24-DIP module, 9 leads
  • ROHS3 Compliant: True
  • Supplied in: Tube of 10
