Same model may have multiple batches, images only for reference.

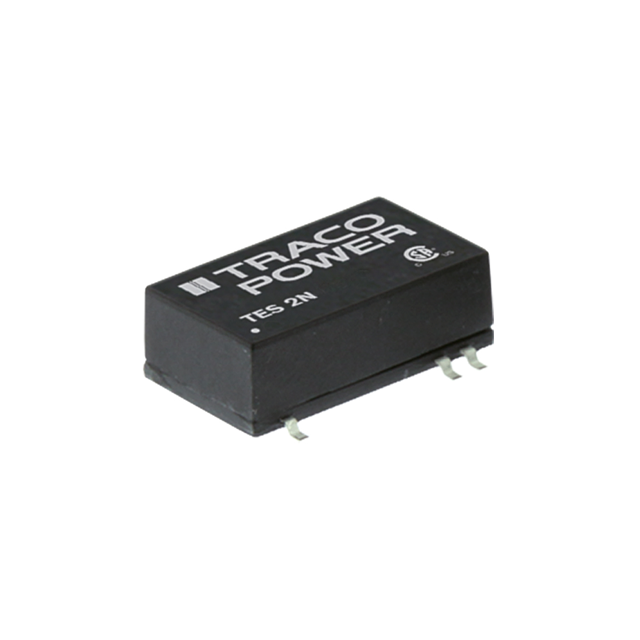

TES 2N-2423 Real Image
Same model may have multiple batches, images only for reference.

TES 2N-2423

Part No TES 2N-2423
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 65mA, 65mA 18V - 36V Input
Datasheet
TES 2N-2423 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TES 2N (2W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 65mA, 65mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting SMD (SMT)
Package / Case 16-SMD Module, 6 Leads
Dimension 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Base Product Number TES 2
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2622
Standard Package 10
Win Source Part Number 1005394-TES 2N-2423
Ultra Librarian 3D Model Ultra Librarian TES 2N-2423 CAD Model

Description

The TES 2N-2423 is a high-performance isolated DC-DC converter that is designed to provide reliable power conversion in a variety of applications.

  • Manufacturer: Traco Power
  • Win Source Part Number: 1005394-TES 2N-2423
  • Outputs: two outputs
  • Maximum Output Current: 65mA each
  • Input Voltage Range: 18V to 36V
  • Output Voltage Ranges: 15V and -15V
  • Efficiency: 80%
  • Operating Temperature Range: -40°C to 85°C
  • Status: not for new designs
  • Classification: EAR99
