Same model may have multiple batches, images only for reference.

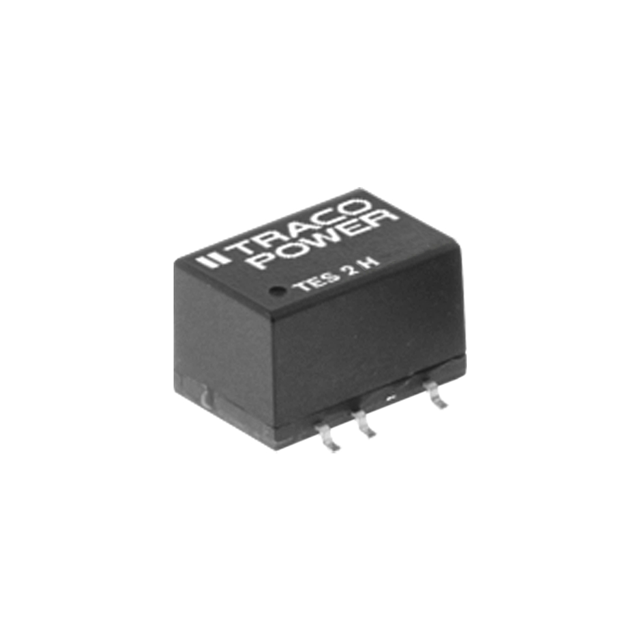

TES 2-0523H Real Image
Same model may have multiple batches, images only for reference.

TES 2-0523H

Part No TES 2-0523H
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 66mA, 66mA 4.5V - 5.5V Input
Datasheet
TES 2-0523H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 66mA, 66mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 76%
Mounting Surface Mount
Case / Package 10-SMD Module, 6 Leads
Size / Dimension 0.64" L x 0.37" W x 0.35" H (16.3mm x 9.3mm x 8.9mm)
Base Product Number TES 2
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2464
Standard Package 10
Win Source Part Number 1335870-TES 2-0523H
Ultra Librarian 3D Model Ultra Librarian TES 2-0523H CAD Model

Description

The 1335870-TES 2-0523H is an isolated module DC-DC converter from Traco Power that comes in a 10-SMD module with 6 leads.

  • Outputs: Two outputs with a maximum current output of 66mA each
  • Input Voltage Range: 4.5V to 5.5V
  • Power Rating: 2W
  • Efficiency: 76 percent
  • Suitable for: Use in ITE (Commercial) applications
  • Temperature Range: -40°C to 85°C (with derating)
