TES 2-0511M

Name: TES 2-0511M
Brand: Traco Power
SKU: 1335883
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TES 2-0511M
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 5V - 5.5V Input
Datasheet	TES 2-0511M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	4 kV
Applications	ITE (Commercial), Medical
Features	SCP
Temperature Range - Operating	-25°C ~ 80°C (With Derating)
Efficiency	66%
Mounting	Surface Mount
Case / Package	16-SMD Module, 6 Leads
Size / Dimension	0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
Base Product Number	TES 2
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	1951-2463
Standard Package	10
Win Source Part Number	1335883-TES 2-0511M
Ultra Librarian 3D Model	Ultra Librarian TES 2-0511M CAD Model

Alternative Products

Description

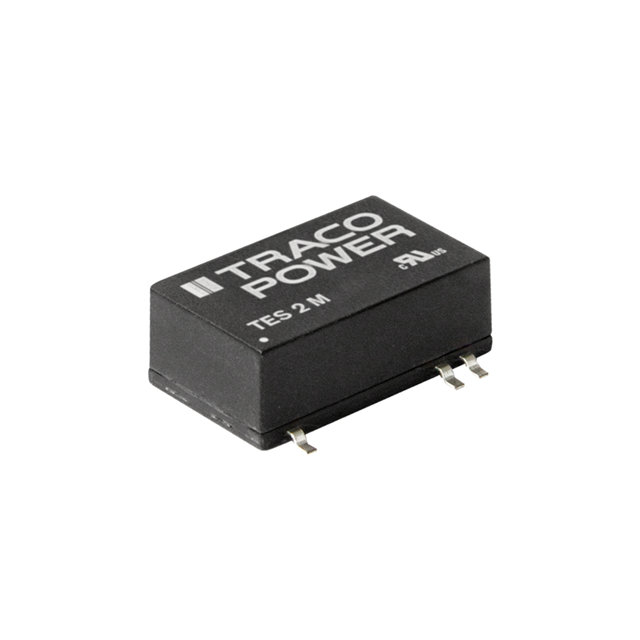

The TES 2-0511M is a DC-DC converter module from Traco Power with a power output of 2 watts.

Module Type: Isolated
Output Voltage: One output voltage of 5V
Voltage Isolation: 4 kV
Maximum Output Current: 400mA
Applications: ITE (Commercial) and Medical
Features: SCP
Mounting Style: Surface mount
Dimensions: 0.94" L x 0.54" W x 0.36" H (24.0mm x 13.7mm x 9.3mm)
ROHS3 Compliant: Yes
Operating Temperature: -25°C ~ 80°C (With Derating)
