Same model may have multiple batches, images only for reference.

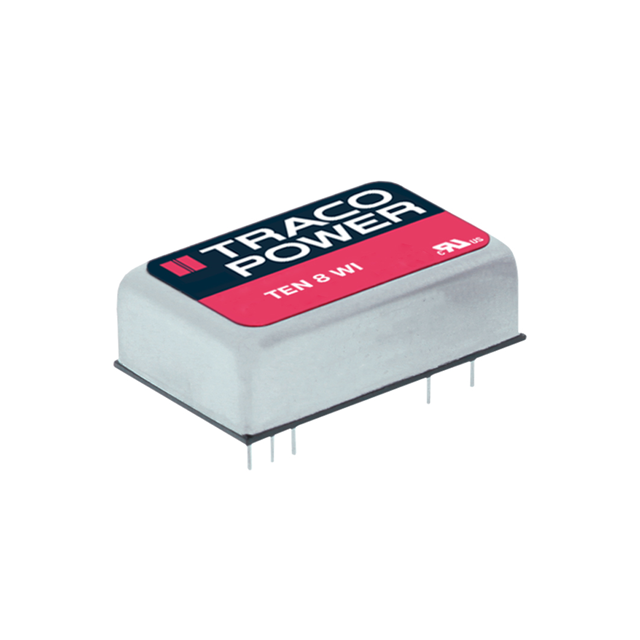

TEN 8-7222WI Real Image
Same model may have multiple batches, images only for reference.

TEN 8-7222WI

Part No TEN 8-7222WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 8W / Isolated Module DC DC Converter 2 Output 12V -12V 333mA, 333mA 43V - 160V Input
Datasheet
TEN 8-7222WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 43V
Voltage - Input (Max) 160V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 333mA, 333mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2577
Standard Package 10
Win Source Part Number 1335863-TEN 8-7222WI
Ultra Librarian 3D Model Ultra Librarian TEN 8-7222WI CAD Model

Description

The 1149303 is an isolated module type DC-DC converter from Traco Power with a power of 8W and a voltage isolation of 1.5kV.

  • Outputs: Two outputs with a maximum current output of 333mA each
  • Voltage Input Range: From 43V to 160V
  • Packaging: Tube
  • Mounting: Through hole technology
  • Size: 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
  • Applications: ITE (Commercial) and Railway
  • Features: Remote on/off, OCP, OVP, SCP, and UVLO
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
