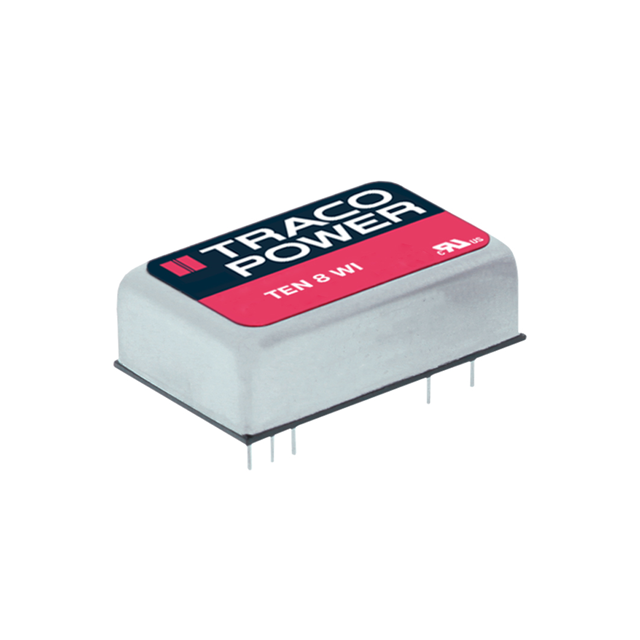

TEN 8-7213WI Real Image
Same model may have multiple batches, images only for reference.

TEN 8-7213WI

Part No TEN 8-7213WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 8W / Isolated Module DC DC Converter 1 Output 15V 533mA 43V - 160V Input
Datasheet
TEN 8-7213WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 43V
Voltage - Input (Max) 160V
Voltage - Output 1 15V
Current - Output (Max) 533mA
Power (Watts) 8 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial), Railway
Features Remote On/Off, OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 86%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm)
Base Product Number TEN 8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-3043,TEN 8-7213WI-ND,TEN8-7213WI-ND,TEN8-7213WI
Standard Package 10
Win Source Part Number 1335869-TEN 8-7213WI
Ultra Librarian 3D Model Ultra Librarian TEN 8-7213WI CAD Model

Description

The DC DC Converter from Traco Power is a high-quality power supply board mount that comes with a range of features to ensure reliable performance.

  • Features: Remote on/off, OCP, OVP, SCP, and UVLO
  • Power Output: 8 watts
  • Voltage Isolation: 1.5 kV
  • Output: Single output with a maximum current of 533mA
  • Input Voltage Range: 43V to 160V
  • Output Voltage: 15V
  • Efficiency: 86%
  • Applications: ITE (Commercial) and Railway applications
  • Package Standard: 10
