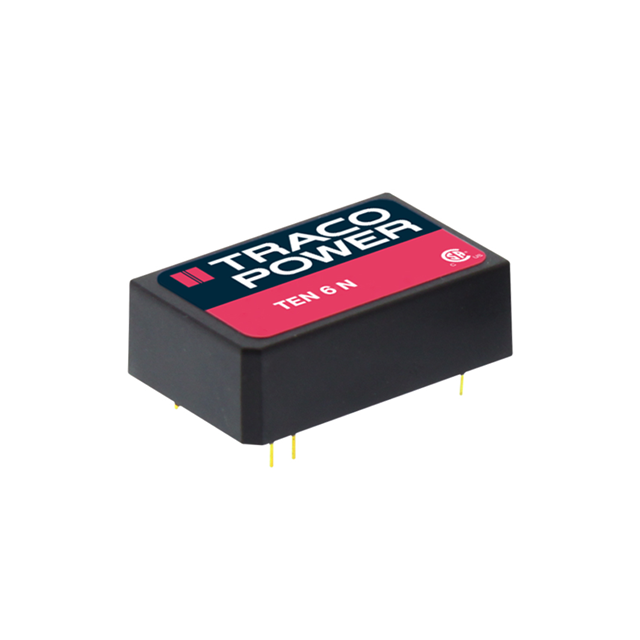

Same model may have multiple batches, images only for reference.

TEN 6-4823N

Name: TEN 6-4823N
Brand: Traco Power
SKU: 1335821
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 6-4823N
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 36V - 75V Input
Datasheet	TEN 6-4823N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	200mA, 200mA
Power (Watts)	6 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	OCP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	84%
Mounting	Through Hole
Case / Package	24-DIP Module, 8 Leads
Size / Dimension	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number	TEN 6
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN 6-4823N-ND,TEN6-4823N
Standard Package	10
Win Source Part Number	1335821-TEN 6-4823N
Ultra Librarian 3D Model	Ultra Librarian TEN 6-4823N CAD Model

Alternative Products

Description

The Traco Power TEN 6-4823N is a board mount DC-DC converter designed for use in ITE (commercial) applications.

Mounting Type: Board Mount
Applications: ITE (commercial)
Type: Isolated Module
Number of Outputs: Two
Maximum Output Current: 200mA each
Maximum Output Power: 6W
Voltage Isolation: 1.5kV
Protection: Overcurrent and short circuit protection
Mounting Style: Through-hole
Standard Package: 10 units per package
Compliance: RoHS3 compliant
Operating Temperature Range: -40°C to 85°C
