Same model may have multiple batches, images only for reference.

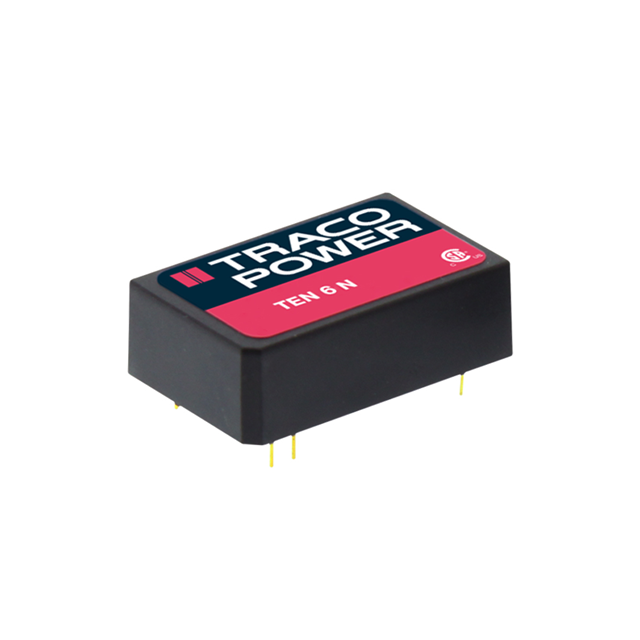

TEN 6-1223N Real Image
Same model may have multiple batches, images only for reference.

TEN 6-1223N

Part No TEN 6-1223N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 6W / Isolated Module DC DC Converter 2 Output 15V -15V 200mA, 200mA 9V - 18V Input
Datasheet
TEN 6-1223N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 200mA, 200mA
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Through Hole
Case / Package 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number TEN 6
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN6-1223N,TEN 6-1223N-ND
Standard Package 10
Win Source Part Number 1335829-TEN 6-1223N
Ultra Librarian 3D Model Ultra Librarian TEN 6-1223N CAD Model

Description

The Traco Power TEN 6-1223N is an isolated module DC-DC converter that is designed to provide a power output of 6 watts, with two output channels.

  • Voltage Output: 15V and -15V
  • Maximum Current Output: 200mA
  • Voltage Isolation: 1.5kV
  • Protection: OCP and SCP
  • Package: Tube
  • Size: 1.25" L x 0.80" W x 0.40" H
  • Application: ITE (Commercial)
  • Standard Package: 10
  • Temperature Range: -40°C ~ 85°C (With Derating)
  • Efficiency: 82%
  • Mounting Type: Through-hole
  • Case/Package: 24-DIP Module, 8 Leads
