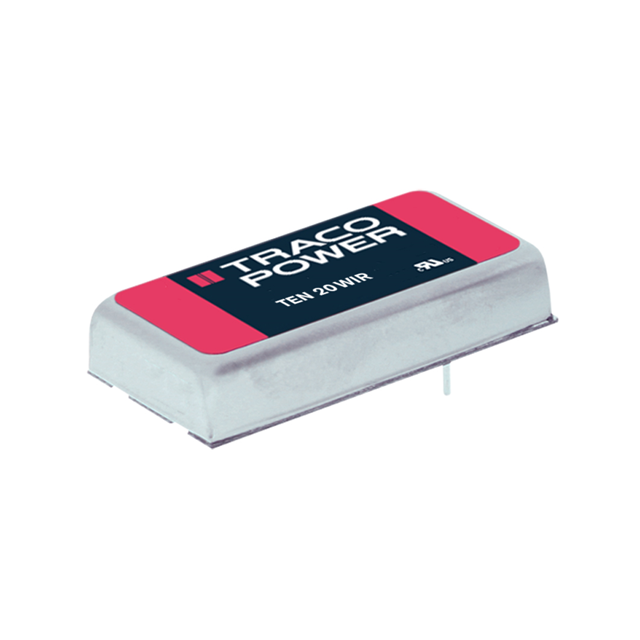

Same model may have multiple batches, images only for reference.

TEN 20-4823WIR

Name: TEN 20-4823WIR
Brand: Traco Power
SKU: 1335660
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TEN 20-4823WIR
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 20W / Isolated Module DC DC Converter 2 Output 15V -15V 667mA, 667mA 18V - 75V Input
Datasheet	TEN 20-4823WIR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	667mA, 667mA
Power (Watts)	20 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial), Railway
Features	Remote On/Off, OCP, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	89%
Mounting	Through Hole
Case / Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number	TEN 20
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TEN 20-4823WIR-ND,TEN20-4823WIR
Standard Package	10
Win Source Part Number	1335660-TEN 20-4823WIR
Ultra Librarian 3D Model	Ultra Librarian TEN 20-4823WIR CAD Model

Alternative Products

Description

The Traco Power TEN 20-4823WIR is a high-quality power supply board mount that comes with a range of features to ensure reliable performance.

Features: Remote on/off, OCP, OVP, and SCP
Power Output: 20 watts
Voltage Isolation: 2.25 kV
Number of Outputs: Two
Maximum Current: 667mA each
Input Voltage: 18V to 75V
Output Voltage: 15V and -15V
Efficiency: 89%
Applications: ITE (Commercial) and Railway
Standard Package: 10
