Same model may have multiple batches, images only for reference.

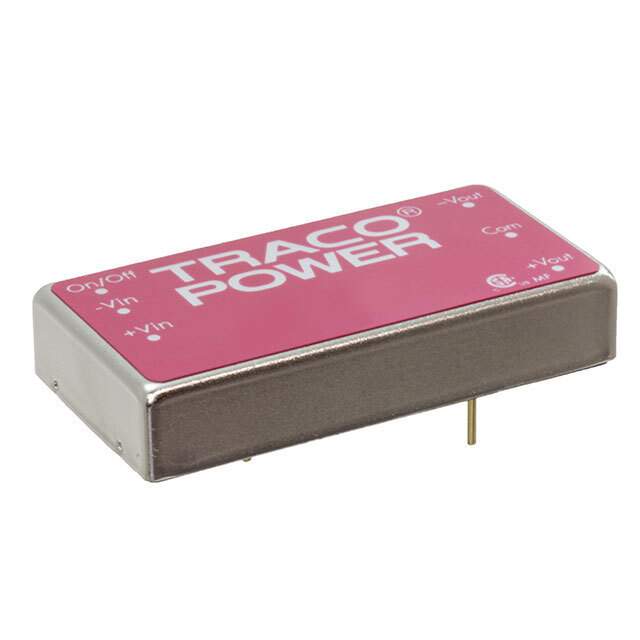

TEN 15-2422WI Real Image
Same model may have multiple batches, images only for reference.

TEN 15-2422WI

Part No TEN 15-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 15W / Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 9V - 36V Input
Datasheet
TEN 15-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 625mA, 625mA
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 85%
Mounting Through Hole
Case / Package 6-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number TEN 15
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEN15-2422WI,TEN15-2422WI-ND,1951-2963
Standard Package 10
Win Source Part Number 1335632-TEN 15-2422WI
Ultra Librarian 3D Model Ultra Librarian TEN 15-2422WI CAD Model

Description

The Traco Power TEN 15-2422WI is a DC-DC converter with a standard package of 10 and a through-hole mounting type.

  • Power Output: 15W
  • Voltage Isolation: 1.5 kV
  • Outputs: two
  • Maximum Output Current: 625mA each
  • Input Voltage: ranges from 9V to 36V
  • Output Voltage: 12V and -12V (output 1 and 2)
  • Efficiency: 85%
  • Package/Case: a 6-DIP module
  • Operating Temperature Range: from -40°C to 85°C (with derating)
  • Base Product Number: TEN 15 specified for this module
