Same model may have multiple batches, images only for reference.

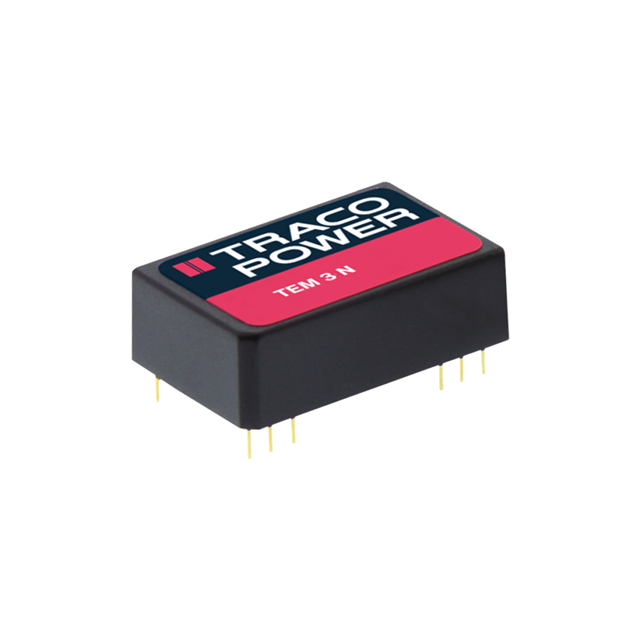

TEM 3-2422N Real Image
Same model may have multiple batches, images only for reference.

TEM 3-2422N

Part No TEM 3-2422N
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W / Isolated Module DC DC Converter 2 Output 12V -12V 125mA, 125mA 21.6V - 26.4V Input
Datasheet
TEM 3-2422N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 81%
Mounting Through Hole
Case / Package 24-DIP Module, 12 Leads
Size / Dimension 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm)
Base Product Number TEM 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2119
Standard Package 10
Win Source Part Number 1335626-TEM 3-2422N
Ultra Librarian 3D Model Ultra Librarian TEM 3-2422N CAD Model

Description

The TEM 3-2422N is an isolated module type DC-DC converter from Traco Power.

  • Package: tube package
  • Power Rating: 3W
  • Outputs: two
  • Maximum Output Current: 125mA for each output
  • Input Voltage Range: from 21.6V to 26.4V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Designed for: ITE (Commercial) applications
  • Mounting: using through-hole technology
  • Voltage Isolation: 1.5kV
  • Temperature Range: from -40°C to 85°C (with derating)
  • ECCN: EAR99 compliant
  • ROHS3: compliant
