Same model may have multiple batches, images only for reference.

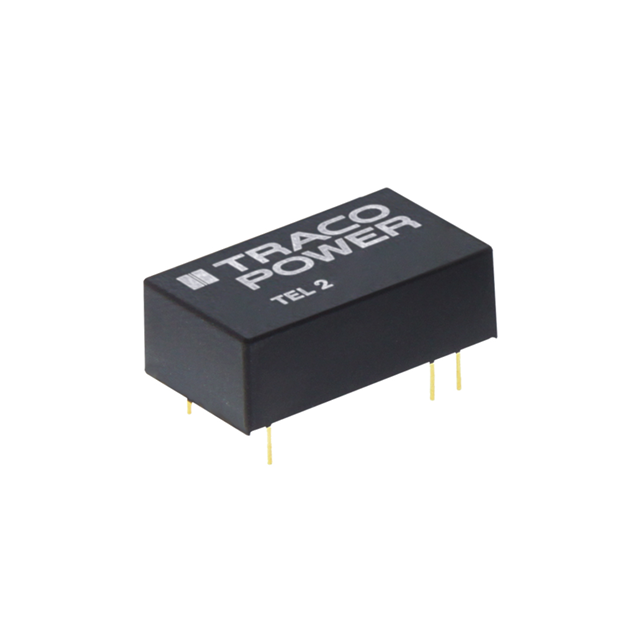

TEL 2-2421 Real Image
Same model may have multiple batches, images only for reference.

TEL 2-2421

Part No TEL 2-2421
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 18V - 36V Input
Datasheet
TEL 2-2421 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Traco Power
Series TEL 2 (2W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 74%
Mounting Type Through Hole
Package / Case 16-DIP Module, 6 Leads
Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 1951-2532
Standard Package 10
Win Source Part Number 1225198-TEL 2-2421
Ultra Librarian 3D Model Ultra Librarian TEL 2-2421 CAD Model

Description

The Traco Power TEL 2-2421 is a DC-DC converter module designed for isolated power supply applications.

  • Output 1: 5V
  • Output 2: -5V
  • Power Rating: 2W
  • Efficiency: 74%
  • Voltage Isolation: 1.5kV
  • Operating Temperature Range: -40°C to 75°C
  • Package: 16-DIP module
  • Leads: 6
  • Status: Not for new designs
