Same model may have multiple batches, images only for reference.

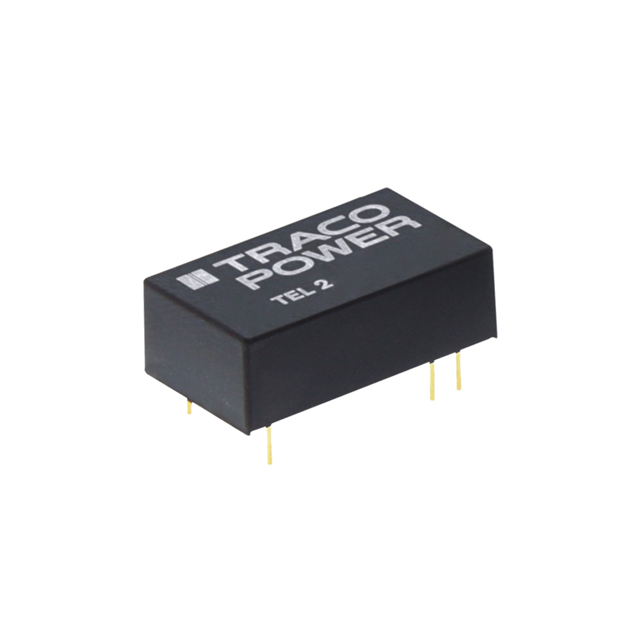

TEL 2-1223 Real Image
Same model may have multiple batches, images only for reference.

TEL 2-1223

Part No TEL 2-1223
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 65mA, 65mA 9V - 18V Input
Datasheet
TEL 2-1223 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 65mA, 65mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 78%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TEL 2-1223-ND,TEL2-1223
Standard Package 10
Win Source Part Number 1335574-TEL 2-1223
Ultra Librarian 3D Model Ultra Librarian TEL 2-1223 CAD Model

Description

The Traco Power Isolated Module DC DC Converter is a reliable power supply for board mount applications.

  • Packaging: Tube
  • Type: Isolated
  • Features: SCP
  • Size/Dimension: 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
  • Applications: ITE (Commercial)
  • Standard Package: 10
  • Mounting: Through hole
  • Power: 2 W
  • Voltage Isolation: 1.5 kV
  • Outputs: 2 outputs
  • Current Output: 65mA and 65mA
  • Voltage Input: 9V - 18V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Voltage Output 3: Not applicable
  • Efficiency: 78%
  • Temperature Range: -40°C ~ 75°C
  • Compliance: RoHS3 compliant
