Same model may have multiple batches, images only for reference.

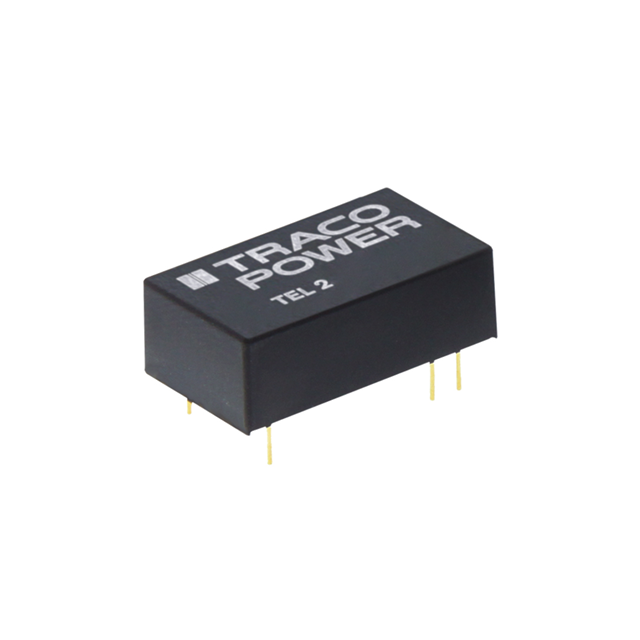

TEL 2-1222 Real Image
Same model may have multiple batches, images only for reference.

TEL 2-1222

Part No TEL 2-1222
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W / Isolated Module DC DC Converter 2 Output 12V -12V 85mA, 85mA 9V - 18V Input
Datasheet
TEL 2-1222 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 85mA, 85mA
Power (Watts) 2 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 75°C
Efficiency 78%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 2
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-2102
Standard Package 10
Win Source Part Number 1335565-TEL 2-1222
Ultra Librarian 3D Model Ultra Librarian TEL 2-1222 CAD Model

Description

This is a 2W isolated module DC-DC converter with SCP feature.

  • Outputs: Two outputs
  • Voltage Isolation: 1.5kV
  • Voltage Input Range: 9V to 18V
  • Output Voltage 1: 12V
  • Output Voltage 2: -12V
  • Temperature Range: -40°C to 75°C
  • Efficiency: 78%
  • Compliance: RoHS3 compliant
  • Standard Package: 10
  • Size: 0.94 inches length x 0.54 inches width x 0.31 inches height
  • Mounting: Through-hole
