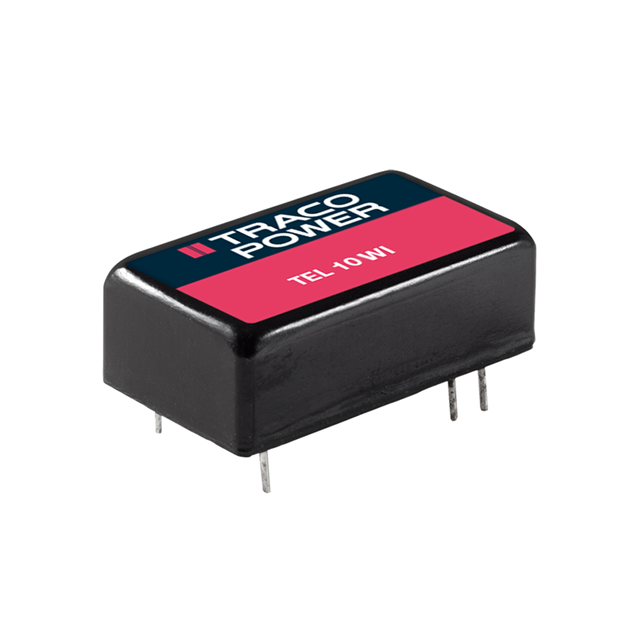

TEL 10-2422WI Real Image
Same model may have multiple batches, images only for reference.

TEL 10-2422WI

Part No TEL 10-2422WI
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 10W / Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 9V - 36V Input
Datasheet
TEL 10-2422WI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 416mA, 416mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 88°C (With Derating)
Efficiency 87%
Mounting Through Hole
Case / Package 16-DIP Module, 6 Leads
Size / Dimension 0.94" L x 0.54" W x 0.31" H (23.8mm x 13.7mm x 8.0mm)
Base Product Number TEL 10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1951-1512
Standard Package 10
Win Source Part Number 1335545-TEL 10-2422WI
Ultra Librarian 3D Model Ultra Librarian TEL 10-2422WI CAD Model

Description

The TEL 10-2422WI is an isolated module DC-DC converter manufactured by Traco Power.

  • Power Output: 10 W
  • Outputs: Two
  • Input Voltage Range: 9V to 36V
  • Package: 16-DIP module with 6 leads
  • Mounting: Through a hole
  • Voltage Isolation: 1.5 kV
  • Compliance: RoHS3
  • Efficiency: 87%
  • Application: ITE (Commercial)
  • Temperature Range: -40°C to 88°C (With Derating)
