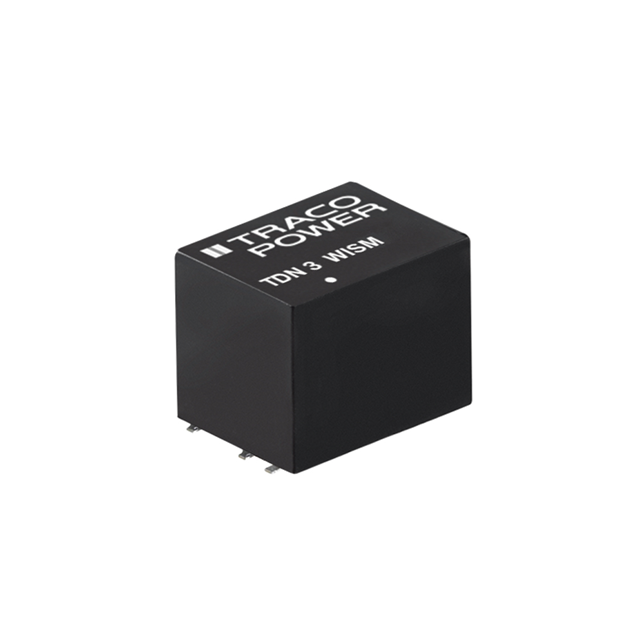

The TDN 3-2413WISM is an isolated module DC-DC converter designed for use in various electronic devices. Bold the product name (e.g., BAV99S,135 → TDN 3-2413WISM) and manufacturer (e.g., Nexperia USA Inc. → Traco Power).

• Category: Power Supplies - Board Mount > DC DC Converters
• Packaging: Tube
• Type: Isolated Module
• Features: Remote On/Off, SCP
• Size/Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
• Applications: ITE (Commercial)
• Standard Package: 10
• Mounting: Surface Mount
• Power: 3 W
• Voltage Isolation: 1.6 kV
• Number of Outputs: 1
• Current Output: 200mA (Max)
• Voltage Input (Min): 9V
• Voltage Input (Max): 36V
• Voltage Output 1: 15V
• Efficiency: 84%
• Voltage Output 2, 3 and 4: Not Applicable
• Operating Temperature: -40°C ~ 70°C
• Case / Package: 7-SMD Module, 6 Leads
• MSL Level: 2 (1 Year)
• HTSUS: 8504.40.9580
• Base Product Number: TDN 3
• ROHS3 Compliant: True
