Same model may have multiple batches, images only for reference.

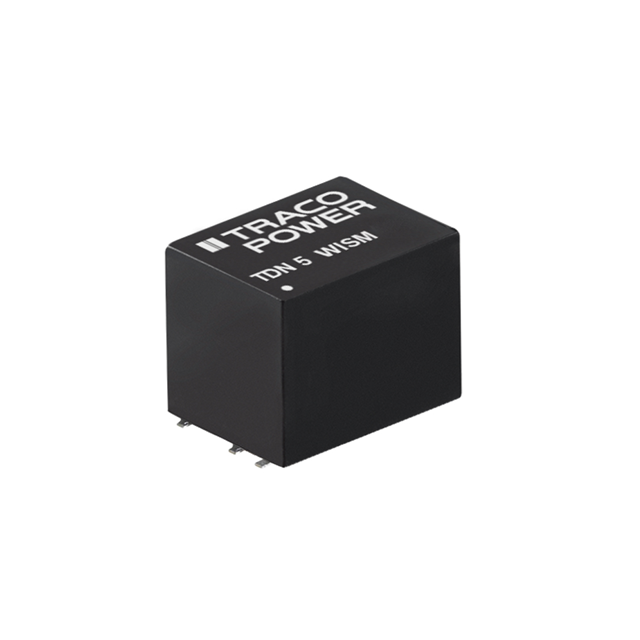

TDN 5-0923WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 5-0923WISM

Part No TDN 5-0923WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 5W / Isolated Module DC DC Converter 2 Output 15V -15V 168mA, 168mA 4.5V - 13.2V Input
Datasheet
TDN 5-0923WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 168mA, 168mA
Power (Watts) 5 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 75°C (With Derating)
Efficiency 83%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Approval Agency UL
Standard Number 60950-1; 62368-1
Base Product Number TDN 5
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN5-0923WISM,TDN 5-0923WISM-ND
Standard Package 10
Win Source Part Number 1335477-TDN 5-0923WISM
Ultra Librarian 3D Model Ultra Librarian TDN 5-0923WISM CAD Model

Description

This electronic component is manufactured by Traco Power and the Win Source Part Number is 1335477-TDN 5-0923WISM.

  • Category: Power Supplies - Board Mount>DC DC Converters
  • Packaging: Tube
  • Type: Isolated module
  • Features: Remote on/off and SCP
  • Size/Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
  • Application: ITE (Commercial)
  • Standard Package: 10 pieces
  • Mounting: Surface mountable
  • Power (watts): 5W
  • Voltage-Isolation: 1.6 kV
  • Outputs: 2
  • Maximum Output Current: 168mA and 168mA
  • Input Voltage: 4.5V to 13.2V
  • Output Voltage: 15V and -15V respectively
  • Efficiency: 83%
  • Operating Temperature: -40°C to 75°C (With Derating)
  • Case/Package: 7-SMD Module, 6 Leads
  • ECCN: EAR99
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.40.9580
  • Other part numbers: TDN5-0923WISM and TDN 5-0923WISM-ND
  • Base product number: TDN 5
  • UL Approved: Yes
  • ROHS3 Compliant: Yes
  • Standard number: 60950-1 and 62368-1
