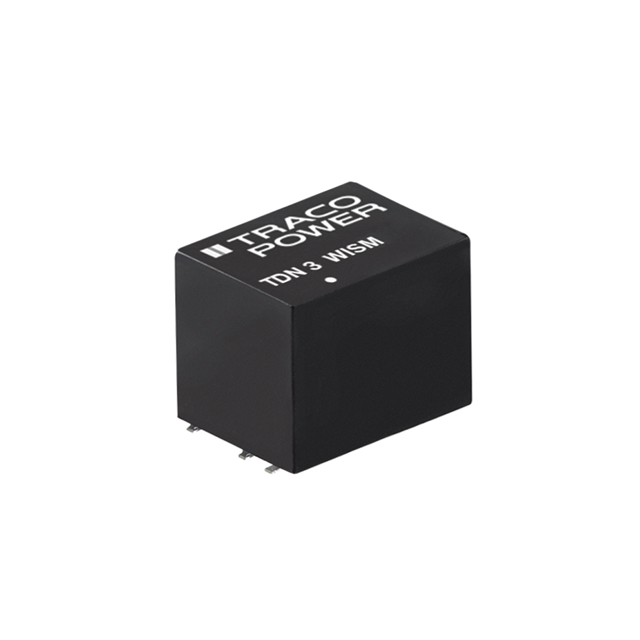

Same model may have multiple batches, images only for reference.

TDN 3-4815WISM

Name: TDN 3-4815WISM
Brand: Traco Power
SKU: 1335496
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TDN 3-4815WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 3W / Isolated Module DC DC Converter 1 Output 24V 125mA 18V - 75V Input
Datasheet	TDN 3-4815WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	24V
Current - Output (Max)	125mA
Power (Watts)	3 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 70°C
Efficiency	82%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 3
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN 3-4815WISM-ND,TDN3-4815WISM
Standard Package	10
Win Source Part Number	1335496-TDN 3-4815WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 3-4815WISM CAD Model

Alternative Products

Description

The Traco Power TDN 3-4815WISM is an isolated module power supply that features remote on/off and SCP.

Type: DC-DC converter
Power Rating: 3W
Efficiency Rating: 82%
Voltage Isolation: 1.6 kV
Maximum Output Current: 125mA
Input Voltage Range: 18V to 75V
Output Voltage: 24V
Operating Temperature Range: -40°C to 70°C
Applications: ITE (Commercial)
Mounting Type: Surface mountable
Package Size: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Package: 7-SMD module and 6 leads
Alternative part numbers: TDN 3-4815WISM-ND and TDN3-4815WISM
