Same model may have multiple batches, images only for reference.

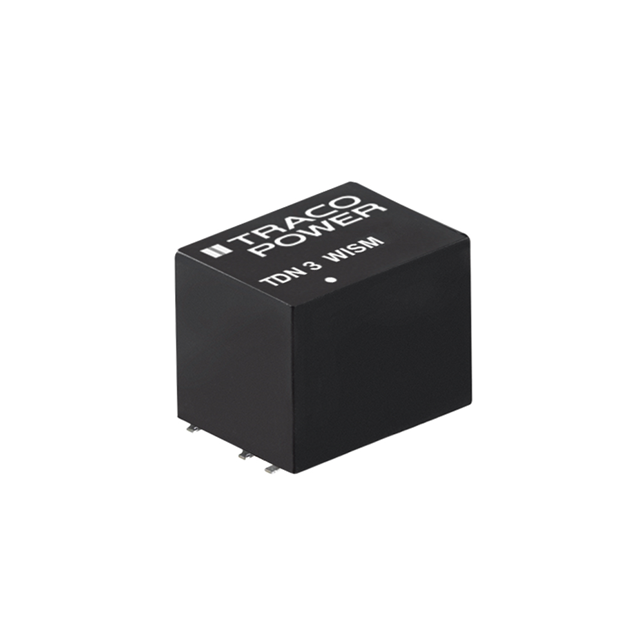

TDN 3-2423WISM Real Image
Same model may have multiple batches, images only for reference.

TDN 3-2423WISM

Part No TDN 3-2423WISM
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 9V - 36V Input
Datasheet
TDN 3-2423WISM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 82%
Mounting Surface Mount
Case / Package 7-SMD Module, 6 Leads
Size / Dimension 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number TDN 3
RoHS Status ROHS3 Compliant
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDN 3-2423WISM-ND,TDN3-2423WISM
Standard Package 10
Win Source Part Number 1335437-TDN 3-2423WISM
Ultra Librarian 3D Model Ultra Librarian TDN 3-2423WISM CAD Model

Description

The 1335437-TDN 3-2423WISM is an isolated module DC DC converter from Traco Power.

  • Package: 7-SMD module with 6 leads
  • Standard Package: 10
  • Features: Remote On/Off and SCP
  • Size/Dimension: 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
  • Application: ITE (Commercial) applications
  • Power: 3W
  • Voltage Isolation: 1.6kV
  • Outputs: Two
  • Current Output (max): 100mA, 100mA
  • Voltage Input (min): 9V
  • Voltage Input (max): 36V
  • Voltage Output 1: 15V
  • Voltage Output 2: -15V
  • Efficiency: 82%
  • Operating Temperature Range: -40°C to 70°C
  • MSL Level: 2 (1 year)
  • ROHS3 Compliant: Yes
