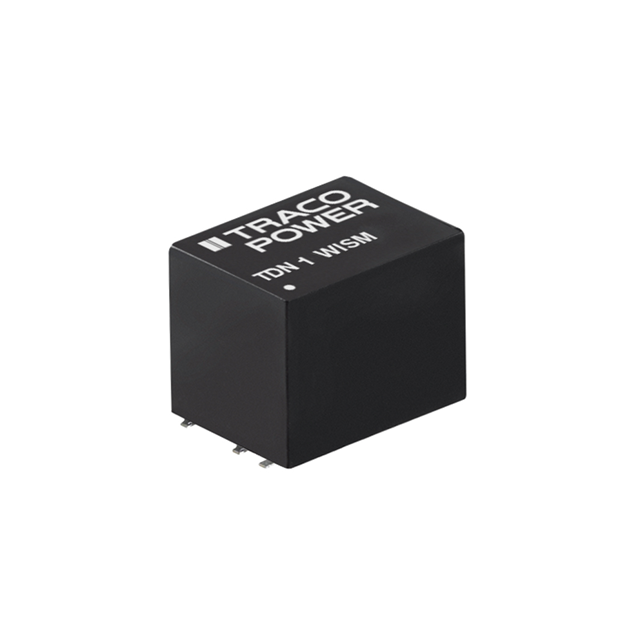

Same model may have multiple batches, images only for reference.

TDN 1-1223WISM

Name: TDN 1-1223WISM
Brand: Traco Power
SKU: 1335393
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TDN 1-1223WISM
Manufacturer	Traco Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 1.1W / Isolated Module DC DC Converter 2 Output 15V -15V 35mA, 35mA 4.5V - 18V Input
Datasheet	TDN 1-1223WISM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Traco Power
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	35mA, 35mA
Power (Watts)	1.1 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, SCP
Temperature Range - Operating	-40°C ~ 90°C
Efficiency	81%
Mounting	Surface Mount
Case / Package	7-SMD Module, 6 Leads
Size / Dimension	0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm)
Base Product Number	TDN 1
RoHS Status	ROHS3 Compliant
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	TDN1-1223WISM,TDN 1-1223WISM-ND
Standard Package	10
Win Source Part Number	1335393-TDN 1-1223WISM
Ultra Librarian 3D Model	Ultra Librarian TDN 1-1223WISM CAD Model

Alternative Products

Description

The TDN 1-1223WISM is a power supply board mount DC DC converter module manufactured by Traco Power.

Packaging: Tube
Module Type: Isolated module
Features: Remote on/off feature and short circuit protection
Standard Package: 10
Mounting Style: Surface mount
Power Rating: 1.1 W
Voltage Isolation: 1.6 kV
Outputs: 2
Maximum Current Output: 35mA each
Voltage Input Range: From 4.5V to 18V
Output Voltage for Output 1: 15V
Output Voltage for Output 2: -15V
Efficiency: 81 percent
Temperature Range: -40°C to 90°C
Case/Package: 7-SMD module, 6 leads
Category: Power supplies - board mount DC DC converters
MSL Level: 2 (1 year)
REACH: Unaffected
HTSUS: 8504.40.9580
Other Part Number: TDN1-1223WISM, TDN 1-1223WISM-ND
RoHS3 Compliant: Yes
