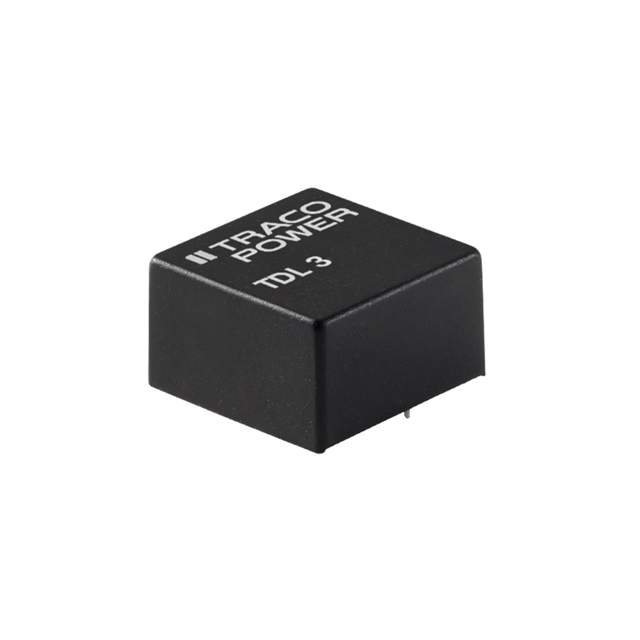

TDL 3-0523 Real Image
Same model may have multiple batches, images only for reference.

TDL 3-0523

Part No TDL 3-0523
Manufacturer Traco Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W / Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 4.5V - 10V Input
Datasheet
TDL 3-0523 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Traco Power
Packaging Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 10V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 70°C
Efficiency 85%
Mounting Through Hole
Case / Package 7-DIP Module, 5 Leads
Size / Dimension 0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
Base Product Number TDL 3
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number TDL 3-0523-ND,TDL3-0523
Standard Package 10
Win Source Part Number 1335356-TDL 3-0523
Ultra Librarian 3D Model Ultra Librarian TDL 3-0523 CAD Model

Description

This isolated module DC/DC converter from Traco Power is designed for use in ITE (Commercial) applications.

  • Voltage Isolation: 1.5kV
  • Output Current (Max per output): 100mA
  • Packaging: Tube
  • Mounting: Through-Hole
  • Power Rating: 3W
  • Standard Package: 10
  • Voltage Input Range: 4.5V to 10V
  • Output Voltage: 15V and -15V
  • Case/Package: 7-DIP Module, 5 Leads
  • Operating Temperature: -40°C to 70°C
